Product Details:
Payment & Shipping Terms:
|
Diameter(mm): | 0.81 | Surface Quality: | Coating Smooth And Uniform |
---|---|---|---|
Yield Rate: | 90.1 | Torsion(360°/200d): | 59 |
Tensile(Mpa): | 2156 | Straightness(mm/3m): | 450 |
Cu(%): | 99.3 | Elongation At Break(%): | 8.8 |
Application: | Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles | Feature: | Bronze Coated, Durable, Normal Tensile, Rustproof, Waterproof |
High Light: | carbon steel wire,bead wire tire,high carbon steel wire |

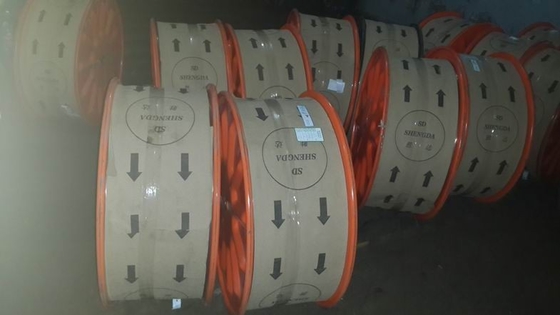

99.3% Cu Steel Bead Wire , Bronze Coated For Automobiles And Planes
1. Highly rust prevention
2. Copper coated smoothly
3. Quick delivery time
Description:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ0.8mm |
||||
Item |
Standard |
Result |
|||||||
Diameter(mm) |
0.8±0.02 |
0.81 |
|||||||
Surface Quality |
Coating Smooth and uniform |
conform |
|||||||
Straightness |
The property of a 3 meter long wire to be straightness at a 600mm-distance of between Straight parallel lines |
450 |
|||||||
Tensile(Mpa) |
≥1850 |
2156 |
|||||||
Elongation(%) |
≥5 |
8.8 |
|||||||
Torsion(360°/200d) |
≥50 |
59 |
|||||||
Cu (%) |
≥97 |
99.3 |
|||||||
Yield Rate % |
>80 |
90.1 |
|||||||
Sn (%) |
0.3-3.0 |
0.70 |
|||||||
Adhesion |
≥685N/50mm |
948N/50mm |
|||||||
Assay of chemical contents |
|||||||||
C |
Mn |
Si |
P |
S |
|||||
0.68-0.71 |
0.5-0.60 |
0.17-0.28 |
0.006-0.018 |
0.005-0.019 |
