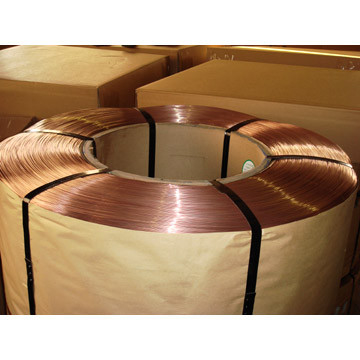

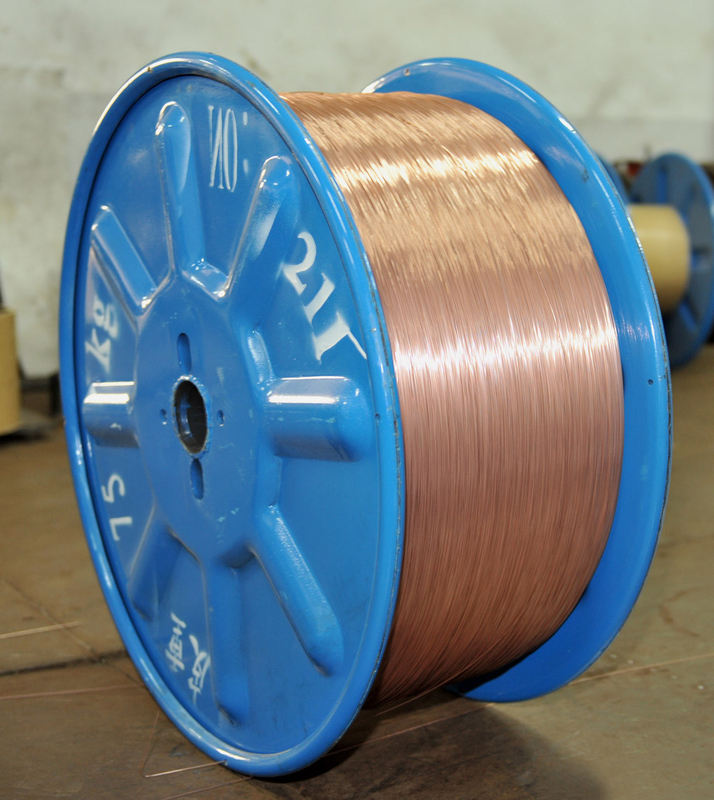

Rustproof Planes Brass Plated Steel Bead Wire
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles | Feature: | Bronze Coated, Durable, Normal Tensile, Rustproof, Waterproof |
|---|
Copper coated smoothly
1980mpa tensile strength
Torsion(360°/100d) 38 times
Descrition:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
|
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ1.4mm |
|
Item |
Standard |
Result |
|||
|
Diameter(mm) |
1.4±0.02 |
1.39-1.42 |
|||
|
Tensile strength (Mpa) |
≥1850 |
1870-1980 |
|||
|
Elongation at break (%) |
≥5 |
5.0-6.0 |
|||
|
Torsion(360°/100d) |
≥25 |
29-38 |
|||
|
Bronze coated(g/kg) |
0.15-0.30 |
0.27 |
|||
|
Straightness(mm/3m) |
≤600 |
200-500 |
|||
|
Surface Quality |
Coating Smooth and uniform |
conform |
|||
