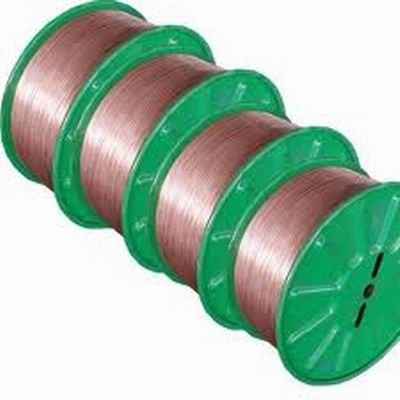

Bronze Coated Vehicle Tire Bead Wire with Dia 0.9mm , 2260N Break Force
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Diameter(mm): | Φ0.9mm | Elongation At Break (%): | 7.0-8.5 |
|---|---|---|---|
| Straightness: | 180-460 | Surface Quality: | Coating Smooth And Uniform |
| Torsion(360°/200d): | 59-75 | Yield Rate (%): | 93.3-94.9 |
| Application: | Bike, Bicycle, Automobiles, Motorcycles, Planes, Vehicles | Feature: | High Tensile, Rustproof, Durable, Waterproof, Bronze Coated |
| High Light: | copper clad steel wire,tyre steel wire,copper coated wire |
||
Bronze Coated Vehicle Tire Bead Wire with Dia 0.9mm , 2260N Break Force
- 0.90mm
- 2260N break force and high tensile
- High material and Advanced technology
- 6000MT monthly production
Description:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Applications
- Reinforcement of all types of tyres such as trucks, buses, cars, motorcycles, bicycles etc.
- use in rubber
Our range of Tyre Bead Steel Wire includes:
- Normal Tensile: 0.78 mm, 0.89 mm, .0.95mm 0.965 mm, 1.55mm1.65 mm,1.8mm 2.0 mm, 2.2 mm
- High Tensile:0.78mmHT 0.89 mmHT, 0.95 mmHT, 0.965mmHT1.295 mmHT, 1.40 mmHT, 1.55 mmHT, 1.60 mmHT, 1.83 mmHT
Specifications:
|
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ0.9mmHT |
||||
|
Item |
Standard |
Result |
|||||||
|
Diameter(mm) |
0.9±0.02 |
0.89-0.92 |
|||||||
|
Break force (N) |
≥2100 |
2100-2260 |
|||||||
|
Yield rate (%) |
93.0-96.0 |
93.3-94.9 |
|||||||
|
Elongation at break(%) |
≥5.0 |
7.0-8.5 |
|||||||
|
Torsion(360°/200d) |
≥50 |
59-75 |
|||||||
|
Residual torsion (° /9m) |
≯360 |
90-120 |
|||||||
|
Bronze coated(g/kg) |
0.35-0.65 |
0.40-0.51 |
|||||||
|
Sn (%) |
0.5-3.0 |
0.7-1.5 |
|||||||
|
Straightness (mm/3m) |
≤500 |
180-460 |
|||||||
|
Adhesion (N/50mm) |
≥1200 |
1242 |
|||||||
|
Surface Quality |
Coating Smooth and uniform |
conform |
|||||||
|
Assay of chemical contents |
|||||||||
|
C |
Mn |
Si |
P |
S |
|||||
|
0.70-0.72 |
0.50-0.60 |
0.17-0.26 |
0.006-0.016 |
0.005-0.018 |
|||||
|
MAIN BUSINESS PARTNERS:
|
|
HARTEX RUBBER PVT LTD |
INDIA |
|
BALKRISHNA INDUSTRIES LIMITED.
|
|
|
SPEEDWAYS TYRE LTD.
|
|
|
GOVIND RUBBER LTD.
|
|
|
KOHINOOR INDIA PVT LTD,
|
|
|
REGENT TRADING COMPANY. |
|
|
OTANI TIRE CO., LTD |
THAILAND |
|
OTANI RADIAL CO.,LTD |
|
|
MOULD MATE CO.,LTD |
|
|
DEERUBBER LIMITED |
|
|
DEESTONE LIMITED |
|
|
DEESTONE INTERNATIONAL LIMITED |
|
|
HWA FONG RUBBER (THAILAND) CO, LTD |
|
|
SHIN HUNG CO.,LTD. |
KOREA |
|
SEILIND.CO.,LTD |
|
|
EVERTHROUGH RUBBER PRODUCTS SDN.BHD. |
MALAYSIA |
|
FRIENDSHIP RUBBER INDUSTRY (M) SDN.BHD. |
|
|
MBPSTAR CORPORATION |
PHILIPPINES |
|
CGS |
SRI LANKA |
|
AROMA |
We export and supply high quality Tyre Bead Wire at a reasonable price. Tyre Bead Wire is a copper/ bronze coated wire and its main function is to act as reinforcement and it helps to get a proper grip of the Tyre on the rim. Tyre Bead Wire has various features of high strength and good flexibility. The type of tyre and structure of bead rings used, determine the size of bead wire. Tyre Beed Wire is applicable at various industries.
