Auto Tire Bead Wire For Tire Rim , Bronze Coated Bead Wire 1.8HTMM OEM
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Break Force (N): | 2050-2200 | Diameter(mm): | Φ 1.8mm |
|---|---|---|---|
| Elongation At Break (%): | 5.0-6.0 | Surface Quality: | Coating Smooth And Uniform |
| Yield Ratio: | 85.4-87.6 | Application: | Bike, Bicycle, Automobiles, Motorcycles, Planes, Vehicles |
| Feature: | High Tensile, Rustproof, Durable, Bronze Coated | Torsion(360°/100d): | 29-35 |
| High Light: | steel bead wire,copper coated wire,Tyre Bead Wire |
||

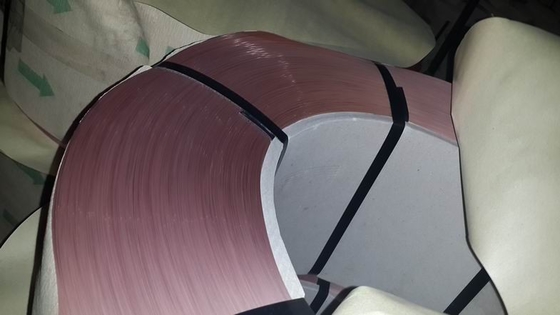

Auto Tire Bead Wire For Tire Rim , Bronze Coated Bead Wire 1.8HTMM OEM
- Elongation at break (6.0%)
- Automatic computer control system
- Specialization product line
- Standard :AISI, ASTM,GB,JIS
- Steel grade: 70# ,72# ,80# ,82#
Descrpition:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,
motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Applications
- Reinforcement of all types of tyres such as trucks, buses, cars, motorcycles, bicycles etc.
- use in rubber
Our range of Tyre Bead Steel Wire includes:
- Normal Tensile: 0.78 mm, 0.89 mm, .0.95mm 0.965 mm, 1.55mm1.65 mm,1.8mm 2.0 mm, 2.2 mm
- High Tensile:0.78mmHT 0.89 mmHT, 0.95 mmHT, 0.965mmHT1.295 mmHT, 1.40 mmHT, 1.55 mmHT, 1.60 mmHT, 1.83 mmHT
Specifications:
|
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ 1.8mmHT |
|
Item |
Standard |
Result |
|||
|
Diameter(mm) |
1.8± 0.02 |
1.78-1.82 |
|||
|
Breaking force (Mpa) |
≥2050 |
2050-2200 |
|||
|
Elongation at break(%) |
≥5.0 |
5.0-6.0 |
|||
|
Yield ratio(%) |
≥85 |
85.4-87.6 |
|||
|
Torsion(360°/100d) |
≥25 |
29-35 |
|||
|
Bronze coated(g/kg) |
0.20-0.40 |
0.32-0.36 |
|||
|
Sn (%) |
0.3-3.0 |
1.7 |
|||
|
Cu(%) |
≥97 |
98.3 |
|||
|
Surface Quality |
Coating Smooth and uniform |
conform |
|||
We export and supply high quality Tyre Bead Wire at a reasonable price. Tyre Bead Wire is a copper/ bronze coated wire and its main function is to act as reinforcement and it helps to get a proper grip of the Tyre on the rim. Tyre Bead Wire has various features of high strength and good flexibility. The type of tyre and structure of bead rings used, determine the size of bead wire. Tyre Beed Wire is applicable at various industries.
