Rustproof 0.96mm Tire Steel Wire For Automobile / Car Tyre Bead Wire Custom

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Rustproof 0.96mm Tire Steel Wire For Automobile / Car Tyre Bead Wire Custom Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shengda
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 20 MT
Packaging Details: Z2
Delivery Time: With 20 days after confirmed purchase order
Payment Terms: L/C at sight ,T/T in advance,D/P at sight
Supply Ability: Monthly 6000 Mt
Detailed Product Description
Diameter(mm): Φ0.96mm Elongation At Break (%): 7.2 -8.8
Tensile Strength (Mpa): 1920-2100 Torsion(360°/100d): 30-40
Application: Bike, Bicycle, Automobiles, Motorcycles, Planes, Vehicles Feature: Rustproof, Durable, Waterproof, Bronze Coated
High Light:

steel wire ropes

,

mild steel wire

,

carbon steel wire

Rustproof 0.96mm Tire Steel Wire  For Automobile / Car Tyre Bead Wire Custom





Description:



Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.



We export and supply high quality Tyre Bead Wire at a reasonable price. Tyre Bead Wire is a copper/ bronze coated wire and its main function is to act as reinforcement and it helps to get a proper grip of the Tyre on the rim.The type of tire and structure of bead rings used, determine the size of bead wire. Tire Steel Wire is applicable at various industries.





Following basic properties are required in the making of Tire Steel Wire:



  • Combination of high tensile and ductility,
  • Uniform and appropriate bronze coating,
  • Strong adhesion of wire to the rubber,
  • Consistency in physical properties
  • Uniform winding and proper coil dimensions.



Our offered Tire Steel Wire range is widely used in automobile industry, it act as reinforcement and helps to get a proper grip on tyres. Apart from this, clients can avail these products from us in various sizes, as per their varied needs.

  • High Tensile:0.78mmHT 0.89 mmHT, 0.95 mmHT, 0.965mmHT1.295 mmHT, 1.40 mmHT, 1.55 mmHT, 1.60 mmHT, 1.83 mmHT
  • Normal Tensile: 0.78 mm, 0.89 mm, .0.95mm 0.965 mm, 1.55mm1.65 mm,1.8mm 2.0 mm, 2.2 mm



Features:



  • Tensile strength
  • Precisely engineered
  • Fine finish







Specifications:



Steel grade:70#,72#,80#,82#

Standard: AISI,ASTM,GB,JIS



Description

BEAD  WIRE

Reference

GB/T14450- 2008

Diameter

Φ0.96mm

Item

Standard

Result

Diameter(mm)

0.96±0.02

0.94-0.97

Tensile strength (Mpa)

≥1850

1920-2100

Yield ratio (%)

92.0-95.0

92.7-93.9

Elongation at break (%)

≥5

7.2 -8.8

Torsion (360°/200d)

≥28

30-40

Residual torsion (°/9m)

≯360

90-120

Bronze coated(g/kg)

0.35-0.65

0.40-0.52

Cu (%)

≥97

98.3-99.2

Sn (%)

0.5-3.0

0.80-1.70

Straightness (mm/3m)

≤400

120-400

Adhesion (N/50mm)

≥932

1255

Surface Quality

Coating Smooth and uniform

conform

Assay of chemical contents

C

Mn

Si

P

S

0.70-0.72

0.50-0.60

0.17-0.30

0.006-0.016

0.005-0.018



























































Competitive advantage:

  • 400 straightness bead wire 0.95mm
  • Six steel belts fixed

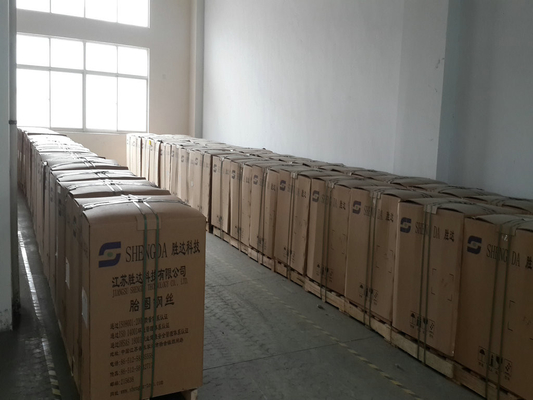

  • Perfect package



Rustproof 096mm Steel Wire Rod For Car  Automobile Tire

Rustproof 096mm Steel Wire Rod For Car  Automobile Tire

Rustproof 096mm Steel Wire Rod For Car  Automobile Tire

Rustproof 096mm Steel Wire Rod For Car  Automobile Tire Rustproof 096mm Steel Wire Rod For Car  Automobile Tire
