Copper Coated Tire Bead Wire

Copper Coated Tire Bead Wire
Copper Coated Tire Bead Wire Copper Coated Tire Bead Wire Copper Coated Tire Bead Wire Copper Coated Tire Bead Wire Copper Coated Tire Bead Wire Copper Coated Tire Bead Wire Copper Coated Tire Bead Wire Copper Coated Tire Bead Wire

Large Image :  Copper Coated Tire Bead Wire Get Best Price

Product Details:
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 20 MT
Packaging Details: Z2
Delivery Time: With 20 days after confirmed purchase order
Payment Terms: L/C at sight ,T/T in advance,D/P at sight
Supply Ability: Monthly 6000 Mt
Detailed Product Description
Application: Bike, Bicycle, Automobiles, Motorcycles Feature: Normal Tensile, Rustproof, Durable, Waterproof, Bronze Coated
Product Name: Tire Bead Wire Steel Grade: 70#,72#,80#,82#
Standard: AISI,ASTM,GB,JIS OEM / ODM: Yes
Highlight:

copper plated steel wire

,

tyre steel wire

,

tire steel wire

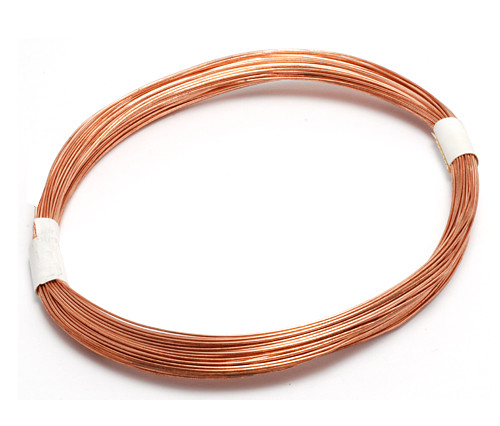

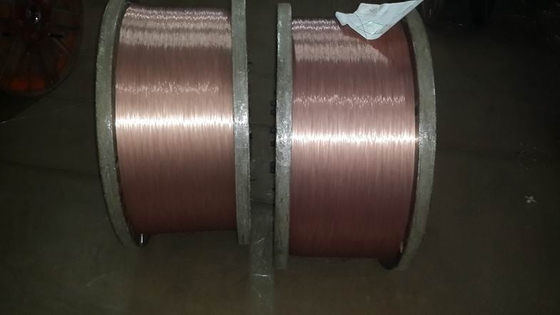

Copper Coated Tire Bead Wire





1. Copper coated

2. Coating Smooth and uniform

3. High tensile

  •  Bead wire for tyre .
  •  Steel wire
  • Bronze bead wire





Descrition:

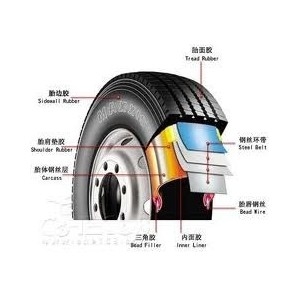

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.





Specifications:



Description

BEAD  WIRE

Reference

GB/T14450- 2008

Diameter

Φ0.78mm

Item

Standard

Result

Diameter(mm)

0.78±0.02

0.79

Surface Quality

Coating Smooth and uniform

conform

Straightness

The property of a 3 meter long wire to be straightness at a 600mm-distance of between Straight parallel lines

450

Tensile(Mpa)

≥1850

2156

Elongation(%)

≥5

8.8

Torsion(360°/200d)

≥50

59

Cu (%)

≥97

99.3

Yield Rate %

>80

90.1

Sn (%)

0.3-3.0

0.70

Adhesion

≥685N/50mm

948N/50mm

Assay of chemical contents

C

Mn

Si

P

S

0.68-0.71

0.5-0.60

0.17-0.28

0.006-0.018

0.005-0.019
