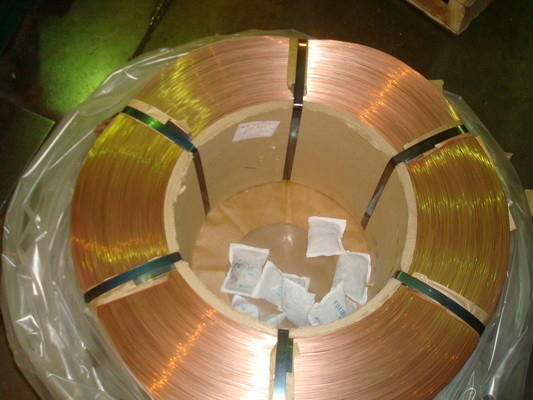

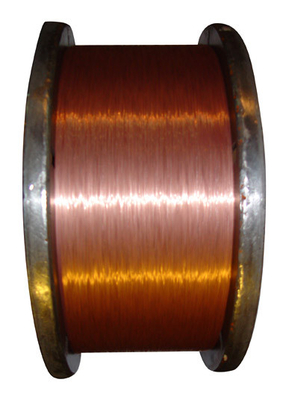

Custom Copper Clad Tyre Bead Wire , Coil With Six Steel Belts Fixed

Custom Copper Clad Tyre Bead Wire , Coil With Six Steel Belts Fixed

Quick Detail:

• Diameter: Φ 1.65mm
• Breaking force (Mpa): 1850-1900
• Elongation at break(%): 5.0-6.0
• Yield ratio  87.6%
• Bronze coated(g/kg): 0.32-0.36
• Superior quality with high material
• Steel grade:70#,72#,80#,82#
• Standard: AISI,ASTM,GB,JIS

Descrition:

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.

Tire Bead Wire is a carbon bronze coated steel wire used in all tires. The main function of bead wire is to hold the tire on the rim and to resist the action of the inflated pressure, which constantly tries to force it off.The bead is the crucial link through which the vehicle load is transferred from rim to the tire. It significantly affects the safety, strength, and the durability of tires.

Following basic properties are required in the making of tyre bead wire:

• Combination of high tensile and ductility,
• Uniform and appropriate bronze coating,
• Strong adhesion of wire to the rubber,
• Consistency in physical properties
• Uniform winding and proper coil dimensions.

Our range of Tyre Bead Steel Wire includes:


• High Tensile:0.78mmHT 0.89 mmHT, 0.95 mmHT, 0.965mmHT1.295 mmHT, 1.40 mmHT, 1.55 mmHT, 1.60 mmHT, 1.83 mmHT
• Normal Tensile: 0.78 mm, 0.89 mm, .0.95mm 0.965 mm, 1.55mm1.65 mm,1.8mm 2.0 mm, 2.2 mm

The Tyre Bead Steel Wire we provide is of premium quality and in compliance with all international standard. These are extensively used in Tyre industry and deliver all their services perfectly.

Specifications:
