Bronze Copper Coated Tyre Bead Wire For Tire Rim , Rustproof Φ 1.8mm

I'm Online Chat Now
Certification
China Zhangjiagang City Shengda Steel Wire Rope Co.,Ltd. certification
China Zhangjiagang City Shengda Steel Wire Rope Co.,Ltd. certification
1.Excellent quality, competitive price, good service, timely delivery; 2. No customer complaints

—— Deestone Limited

Bronze Copper Coated Tyre Bead Wire For Tire Rim , Rustproof Φ 1.8mm

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Bronze Copper Coated Tyre Bead Wire For Tire Rim , Rustproof Φ 1.8mm Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shengda
Certification: ISO9001 , GB/T14450- 2008
Model Number: 1.8mm
standard:: AISI,ASTM,GB,JIS
application:: maufacturing
steel grade:: 70#,72#,80#,82#
Payment & Shipping Terms:
Minimum Order Quantity: 20 MT
Price: free sample
Packaging Details: Z2 350-420kgs/coil with plastic in one box on pallet ,in container
Delivery Time: With 20 days after confirmed purchase order
Payment Terms: L/C at sight ,T/T in advance,D/P at sight
Supply Ability: Monthly 6000 Mt
Detailed Product Description
Breaking Force (Mpa): 1860Mpa Diameter(mm): 1.78-1.82
Elongation At Break (%): 5.0-6.0 Torsion(360°/100d): 29-35
Bronze Coated(g/kg): 0.32-0.36 Yield Ratio(%): 85.4-87.6
High Light:

tire bead wire

,

high strength steel wire

,

High Carbon Steel Wire

Bronze Copper Coated Tyre Bead Wire For Tire Rim , Rustproof Φ 1.8mm





Descrition:



Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.



Tire Bead Wire is a carbon bronze coated steel wire used in all tires. The main function of bead wire is to hold the tire on the rim and to resist the action of the inflated pressure, which constantly tries to force it off.The bead is the crucial link through which the vehicle load is transferred from rim to the tire. It significantly affects the safety, strength, and the durability of tires.



Following basic properties are required in the making of tyre bead wire:



  • Combination of high tensile and ductility,
  • Uniform and appropriate bronze coating,
  • Strong adhesion of wire to the rubber,
  • Consistency in physical properties
  • Uniform winding and proper coil dimensions.





Our range of Tyre Bead Steel Wire includes:


  • High Tensile:0.78mmHT 0.89 mmHT, 0.95 mmHT, 0.965mmHT1.295 mmHT, 1.40 mmHT, 1.55 mmHT, 1.60 mmHT, 1.83 mmHT
  • Normal Tensile: 0.78 mm, 0.89 mm, .0.95mm 0.965 mm, 1.55mm1.65 mm,1.8mm 2.0 mm, 2.2 mm



The Tyre Bead Steel Wire we provide is of premium quality and in compliance with all international standard. These are extensively used in Tyre industry and deliver all their services perfectly.






Specifications:

Steel grade:70#,72#,80#,82#
Standard: AISI,ASTM,GB,JIS


Description

BEAD  WIRE

Reference

GB/T14450- 2008

Diameter

Φ 1.8mm

Item

Standard

Result

Diameter(mm)

1.8± 0.02

1.78-1.82

Breaking force (Mpa)

≥1800

1800-1860

Elongation at break(%)

≥5.0

5.0-6.0

Yield ratio(%)

≥85

85.4-87.6

Torsion(360°/100d)

≥25

29-35

Bronze coated(g/kg)

0.20-0.40

0.32-0.36

Sn (%)

0.3-3.0

1.7

Cu(%)

≥97

98.3

Surface Quality

Coating Smooth and uniform

conform





















Competitive advantage


  • Colour and lustre is bright
  • Superior quality with high material
  • Breaking force 1860Mpa

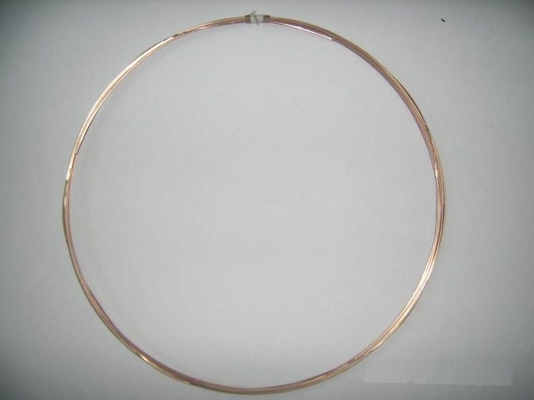

Rustproof 18mm Tyre Bead Wire For Tire Rim Bronze Coated                                             Rustproof 18mm Tyre Bead Wire For Tire Rim Bronze Coated
Rustproof 18mm Tyre Bead Wire For Tire Rim Bronze Coated
Rustproof 18mm Tyre Bead Wire For Tire Rim Bronze Coated
