Product Details:
Payment & Shipping Terms:
|
Application: | Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles | Feature: | Bronze Coated, Durable, High Tensile, Rustproof, Waterproof |
---|---|---|---|
Diameter(mm): | 0.94-0.97 | Yield Ratio (%): | 92.7-93.9 |
Elongation At Break (%): | 7.2 -8.8 | Tensile Strength (Mpa): | 1920-2100 |
Torsion (360°/200d): | 30-40 | Bronze Coated(g/kg): | 0.40-0.52 |
High Light: | copper coated steel wire,coated steel wire,low carbon steel wire |

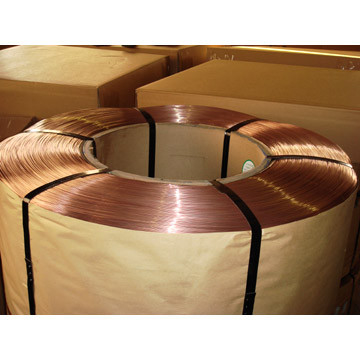

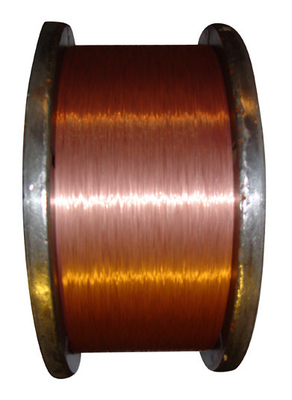

0.96MM Bronze Coate Bead Wire , 1850Mpa Tensile Strength
Description:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ0.96mm |
||||
Item |
Standard |
Result |
|||||||
Diameter(mm) |
0.96±0.02 |
0.94-0.97 |
|||||||
Tensile strength (Mpa) |
≥1850 |
1920-2100 |
|||||||
Yield ratio (%) |
92.0-95.0 |
92.7-93.9 |
|||||||
Elongation at break (%) |
≥5 |
7.2 -8.8 |
|||||||
Torsion (360°/200d) |
≥28 |
30-40 |
|||||||
Residual torsion (°/9m) |
≯360 |
90-120 |
|||||||
Bronze coated(g/kg) |
0.35-0.65 |
0.40-0.52 |
|||||||
Cu (%) |
≥97 |
98.3-99.2 |
|||||||
Sn (%) |
0.5-3.0 |
0.80-1.70 |
|||||||
Straightness (mm/3m) |
≤400 |
120-400 |
|||||||
Adhesion (N/50mm) |
≥932 |
1255 |
|||||||
Surface Quality |
Coating Smooth and uniform |
conform |
|||||||
Assay of chemical contents |
|||||||||
C |
Mn |
Si |
P |
S |
|||||
0.70-1.45 |
0.50-0.60 |
0.17-0.30 |
0.006-0.016 |
0.005-0.018 |
