Tensile Strength (Mpa): | 2150-2300 | Elongation At Break (%): | 7.2 -8.8 |
---|---|---|---|
Diameter(mm): | 0.94-0.97 | Application: | Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles |
Feature: | Bronze Coated, Durable, High Tensile, Rustproof, Waterproof | Torsion (360°/200d): | 30-40 |
Residual Torsion (°/9m): | 90-120 | Bronze Coated(g/kg): | 0.40-0.52 |
High Light: | annealed wire,high tensile steel wire,coated steel wire |

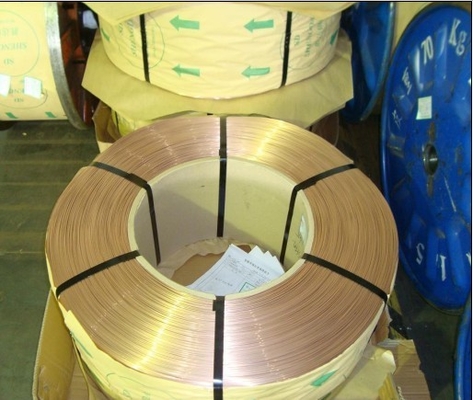

Yellow Bronze Coated Annealed Steel Wire For Motorcycles
Description:

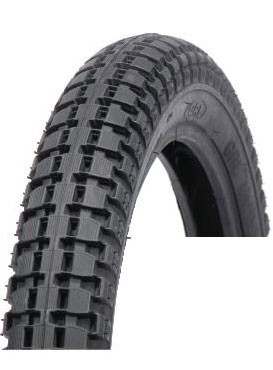

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ0.96mmHT |
||||
Item |
Standard |
Result |
|||||||
Diameter(mm) |
0.96±0.02 |
0.94-0.97 |
|||||||
Tensile strength (Mpa) |
≥2100 |
2150-2300 |
|||||||
Yield ratio (%) |
92.0-95.0 |
92.7-93.9 |
|||||||
Elongation at break (%) |
≥5 |
7.2 -8.8 |
|||||||
Torsion (360°/200d) |
≥28 |
30-40 |
|||||||
Residual torsion (°/9m) |
≯360 |
90-120 |
|||||||
Bronze coated(g/kg) |
0.35-0.65 |
0.40-0.52 |
|||||||
Cu (%) |
≥97 |
98.3-99.2 |
|||||||
Sn (%) |
0.5-3.0 |
0.80-1.70 |
|||||||
Straightness (mm/3m) |
≤400 |
120-400 |
|||||||
Adhesion (N/50mm) |
≥932 |
1255 |
|||||||
Surface Quality |
Coating Smooth and uniform |
conform |
|||||||
Assay of chemical contents |
|||||||||
C |
Mn |
Si |
P |
S |
|||||
0.70-0.72 |
0.50-0.60 |
0.17-0.30 |
0.006-0.016 |
0.005-0.018 |
