Product Details:
Payment & Shipping Terms:
|
Application: | Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles | Feature: | Bronze Coated, Durable, Normal Tensile, Rustproof, Waterproof |
---|---|---|---|
Diameter(mm): | 0.87-0.91 | Break Force (N): | Break Force (N) |
Yield Rate (%): | 93.3-94.9 | Elongation At Break(%): | 7.0-8.5 |
Torsion(360°/200d): | 59-75 | Bronze Coated(g/kg): | 0.40-0.51 |
High Light: | Tire Bead Wire,Bronze Coate Bead Wire |

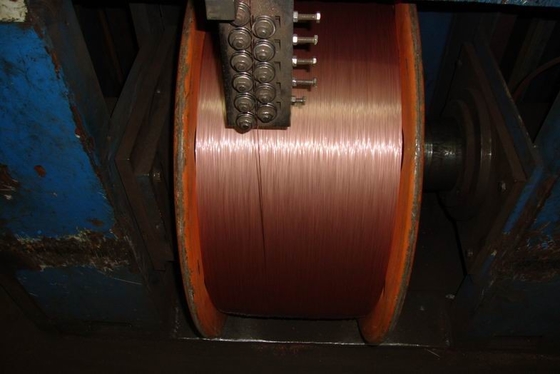

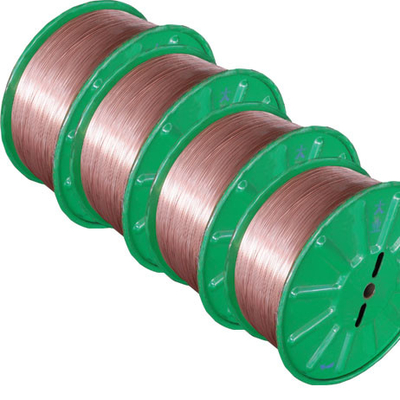

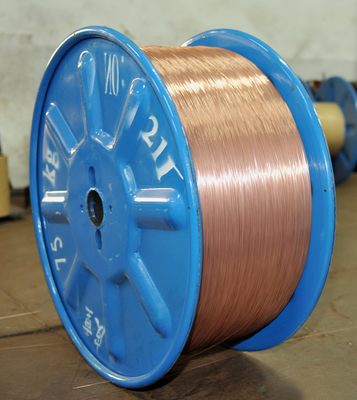

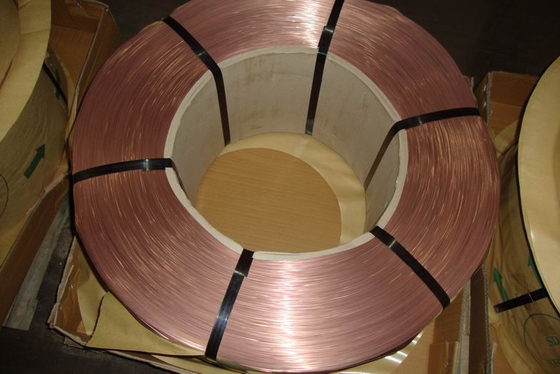

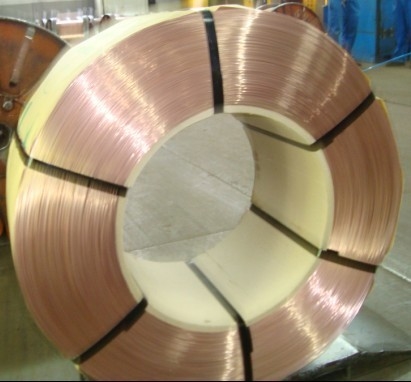

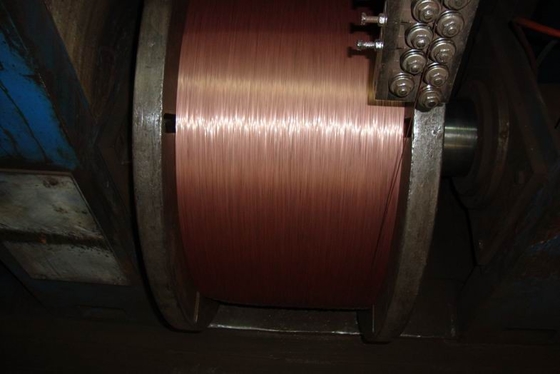

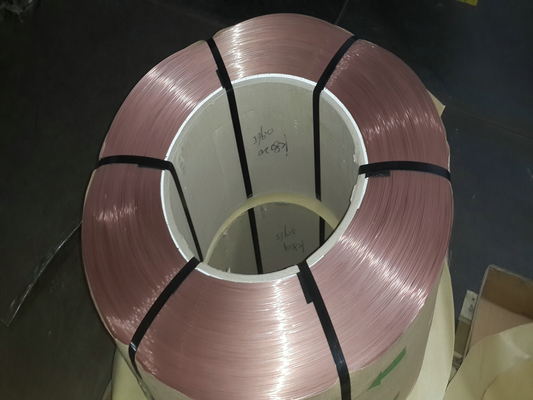

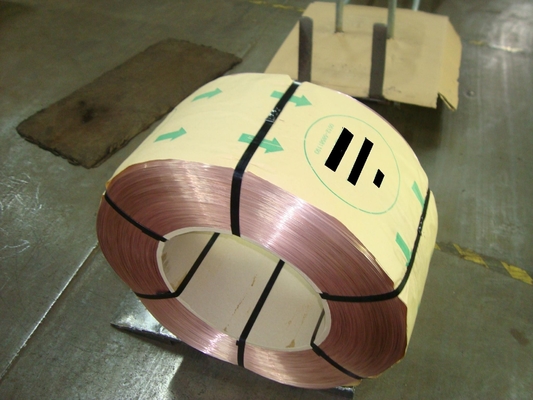

Durable Φ0.89mm Cold Drawn Steel Wire For Bicycle , Yield Rate 96%
1. High tensile
2. Quick delivery
3. Cu 98.3%
Description:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ0.89mmHT |
||||
Item |
Standard |
Result |
|||||||
Diameter(mm) |
0.89±0.02 |
0.87-0.91 |
|||||||
Break force (N) |
≥2100 |
Break force (N) |
|||||||
Yield rate (%) |
93.0-96.0 |
93.3-94.9 |
|||||||
Elongation at break(%) |
≥5.0 |
7.0-8.5 |
|||||||
Torsion(360°/200d) |
≥50 |
59-75 |
|||||||

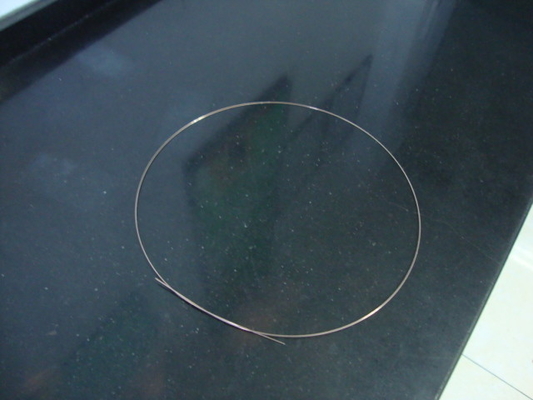

Residual torsion (° /9m) |
≯360 |
90-120 |
|||||||
Bronze coated(g/kg) |
0.35-0.65 |
0.40-0.51 |
|||||||
Sn (%) |
0.5-3.0 |
0.7-1.5 |
|||||||

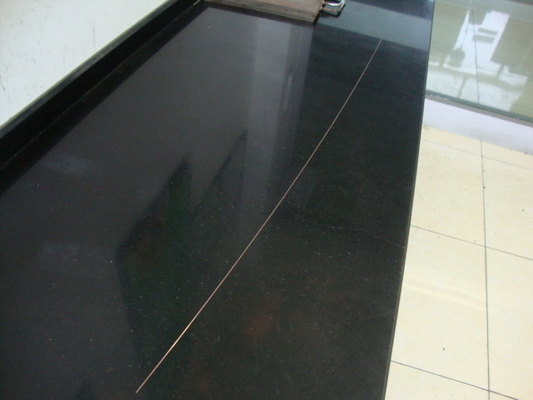

Straightness (mm/3m) |
≤500 |
180-460 |
|||||||
Adhesion (N/50mm) |
≥1200 |
1242 |
|||||||
Surface Quality |
Coating Smooth and uniform |
conform |
|||||||
Assay of chemical contents |
|||||||||
C |
Mn |
Si |
P |
S |
|||||
0.70-0.72 |
0.50-0.60 |
0.17-0.26 |
0.006-0.016 |
0.005-0.018 |
