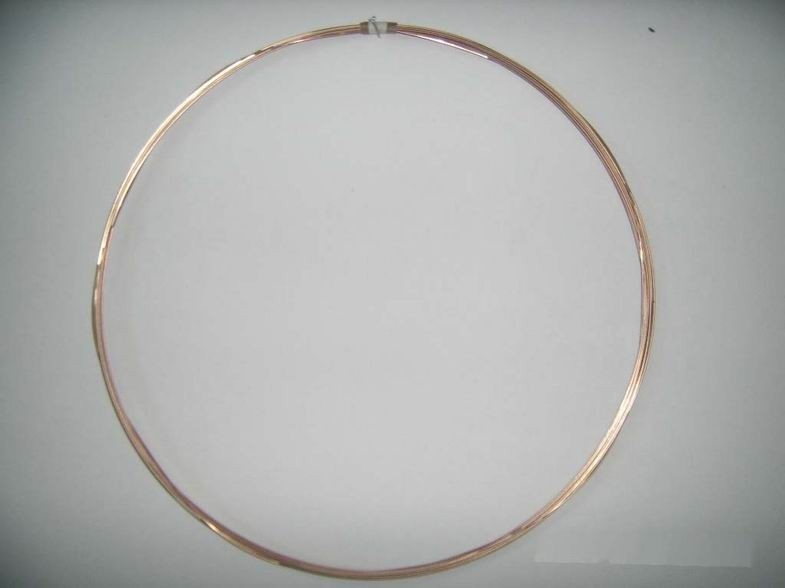

Tire Rim Tire Steel Bead Wire With Bronze Coated , Φ1.8MM

Large Image : Tire Rim Tire Steel Bead Wire With Bronze Coated , Φ1.8MM Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shengda
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	20 MT
Packaging Details:	Z2
Delivery Time:	With 20 days after confirmed purchase order
Payment Terms:	L/C at sight ,T/T in advance,D/P at sight
Supply Ability:	Monthly 6000 Mt

Contact Now

Detailed Product Description

Breaking Force (Mpa):	1800-1860	Torsion(360°/100d):	29-35
Elongation At Break (%):	5.0-6.0	Bronze Coated(g/kg):	0.32-0.36
Diameter(mm):	1.78-1.82	Surface Quality:	Coating Smooth And Uniform
Yield Ratio:	85.4-87.6	Yield Ratio(%):	85.4-87.6
Cu(%):	98.3	Application:	Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles
Feature:	Bronze Coated, Durable, Normal Tensile, Rustproof, Waterproof
High Light:	tire bead wire , mild steel wire , copper clad steel wire

Tire Rim Tire Steel Bead Wire With Bronze Coated , Φ1.8MM

Colour and lustre is bright

Superior quality with high material

Breaking force 1860Mpa

Description:

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.

Specifications:

Description	BEAD WIRE	Reference	GB/T14450- 2008	Diameter	Φ 1.8mm
Item		Standard		Result
Diameter(mm)		1.8± 0.02		1.78-1.82
Breaking force (Mpa)		≥1800		1800-1860
Elongation at break(%)		≥5.0		5.0-6.0
Yield ratio(%)		≥85		85.4-87.6
Torsion(360°/100d)		≥25		29-35
Bronze coated(g/kg)		0.20-0.40		0.32-0.36
Sn (%)		0.3-3.0		1.7
Cu(%)		≥97		98.3
Surface Quality		Coating Smooth and uniform		conform
