Product Details:
Payment & Shipping Terms:
|
Torsion(360°/100d): | 29-38 | Tensile Strength (Mpa): | 1870-1980 |
---|---|---|---|
Elongation At Break (%): | 5.0-6.0 | Bronze Coated(g/kg): | 0.27 |
Diameter(mm): | 1.53-1.56 | Surface Quality: | Coating Smooth And Uniform |
Straightness (mm/3m): | 200-500 | Straightness(mm/3m): | 200-500 |
Application: | Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles | Feature: | Bronze Coated, Durable, Rustproof, Waterproof |
High Light: | tire bead wire,mild steel wire,copper clad steel wire |
Bicycle Steel Bead Wire Φ1.55mm , 6% Elongation At Break
400 straightness bead wire 0.95mm
Six steel belts fixed

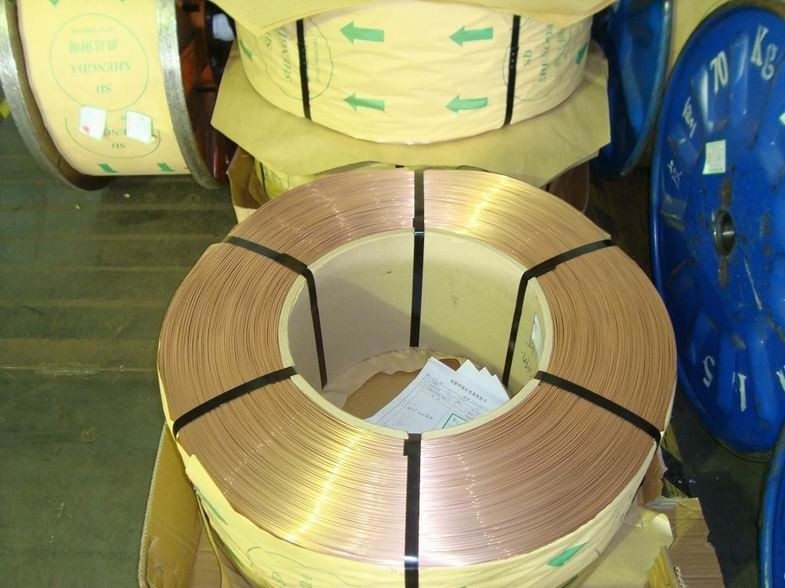

Perfect package
Description:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ1.55mm |
Item |
Standard |
Result |
|||
Diameter(mm) |
1.55±0.02 |
1.53-1.56 |
|||
Tensile strength (Mpa) |
≥1850 |
1870-1980 |
|||
Elongation at break (%) |
≥5 |
5.0-6.0 |
|||
Torsion(360°/100d) |
≥25 |
29-38 |
|||
Bronze coated(g/kg) |
0.15-0.30 |
0.27 |
|||
Straightness(mm/3m) |
≤600 |
200-500 |
|||
Surface Quality |
Coating Smooth and uniform |
conform |
