Breaking Force (Mpa): | 1800-1860 | Torsion(360°/100d): | 29-35 |
---|---|---|---|
Elongation At Break (%): | 5.0-6.0 | Bronze Coated(g/kg): | 0.32-0.36 |
Diameter(mm): | 1.81-1.85 | Surface Quality: | Coating Smooth And Uniform |
Yield Ratio: | 85.4-87.6 | Yield Ratio(%): | 85.4-87.6 |
Cu(%): | 98.3 | Elongation At Break(%): | 5.0-6.0 |
Application: | Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles | Feature: | Bronze Coated, Durable, Normal Tensile, Rustproof, Waterproof |
High Light: | tire bead wire,mild steel wire,copper clad steel wire |

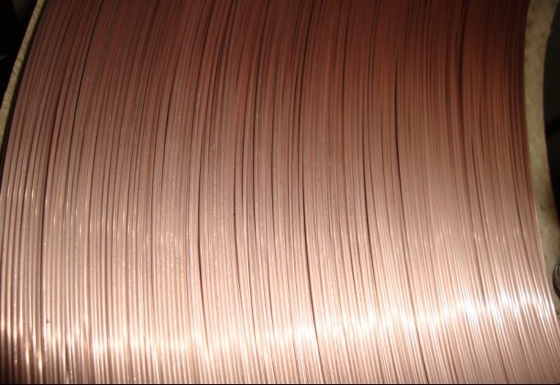

Tire Steel Bead Wire Cu 98.3% With 2200Mpa High Tensile
Bronze coated 0.36g/kg
Torsion(360°/100d) 35times
Perfect package
Description:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ 1.83mm |
Item |
Standard |
Result |
|||
Diameter(mm) |
1.83± 0.02 |
1.81-1.85 |
|||
Breaking force (Mpa) |
≥1800 |
1800-1860 |
|||
Elongation at break(%) |
≥5.0 |
5.0-6.0 |
|||
Yield ratio(%) |
≥85 |
85.4-87.6 |
|||
Torsion(360°/100d) |
≥25 |
29-35 |
|||
Bronze coated(g/kg) |
0.20-0.40 |
0.32-0.36 |
|||
Sn (%) |
0.3-3.0 |
1.7 |
|||
Cu(%) |
≥97 |
98.3 |
|||
Surface Quality |
Coating Smooth and uniform |
conform |
