Φ0.9mm Tyre Steel Bead Wire For Automobiles , 2160N Break Force

All Products

Tire Bead Wire (57)

Steel Bead Wire (19)

Coated Beading Wire (21)

Copper Coated Steel Wire (11)

Annealed Steel Wire (20)

Copper Clad Steel Wire (12)

Tire Steel Wire (39)

Low Carbon Steel Wire (18)

Brass Coated Steel Wire (12)

Cold Drawn Steel Wire (16)

I'm Online Chat Now

Certification

1.Excellent quality, competitive price, good service, timely delivery; 2. No customer complaints

—— Deestone Limited

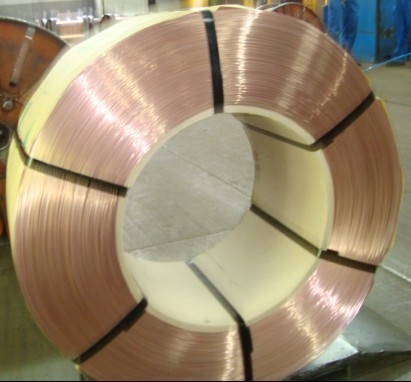

Φ0.9mm Tyre Steel Bead Wire For Automobiles , 2160N Break Force

Large Image : Φ0.9mm Tyre Steel Bead Wire For Automobiles , 2160N Break Force Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shengda
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	20 MT
Packaging Details:	Z2
Delivery Time:	With 20 days after confirmed purchase order
Payment Terms:	L/C at sight ,T/T in advance,D/P at sight
Supply Ability:	Monthly 6000 Mt

Contact Now

Detailed Product Description

Elongation At Break (%):	7.0-8.5	Bronze Coated(g/kg):	0.40-0.51
Diameter(mm):	0.88-0.92	Surface Quality:	Coating Smooth And Uniform
Yield Rate:	93.3-94.9	Break Force (N):	1990-2160
Torsion(360°/200d):	59-75	Straightness (mm/3m):	180-460
Application:	Automobiles, Bicycle, Bike, Motorcycles, Vehicles	Feature:	Bronze Coated, Durable, High Tensile, Rustproof, Waterproof
High Light:	carbon steel wire , bead wire tire , high carbon steel wire

Φ0.9mm Tyre Steel Bead Wire For Automobiles , 2160N Break Force

1. First-class material

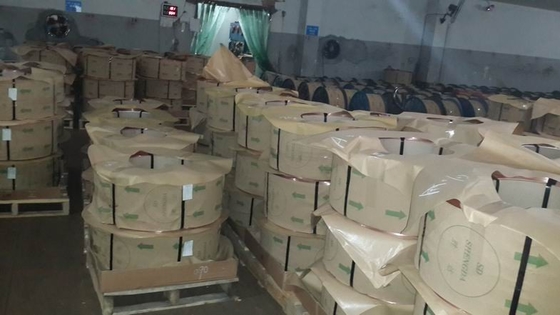

2. Moisture proof package

3.sealing rust

Description:.

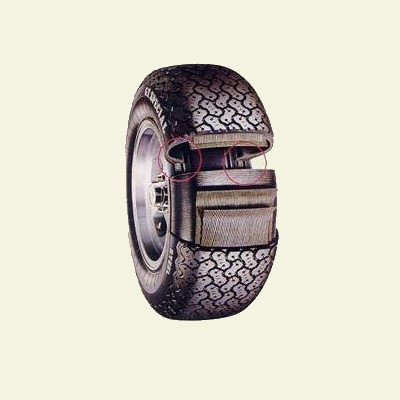

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.

Specifications:

Description	BEAD WIRE		Reference		GB/T14450- 2008		Diameter		Φ0.9mm
Item			Standard				Result
Diameter(mm)			0.9±0.02				0.88-0.92
Break force (N)			≥1950				1990-2160
Yield rate (%)			93.0-96.0				93.3-94.9
Elongation at break(%)			≥5.0				7.0-8.5
Torsion(360°/200d)			≥50				59-75
Residual torsion (° /9m)			≯360				90-120
Bronze coated(g/kg)			0.35-0.65				0.40-0.51
Sn (%)			0.5-3.0				0.7-1.5
Straightness (mm/3m)			≤500				180-460
Adhesion (N/50mm)			≥1200				1242
Surface Quality			Coating Smooth and uniform				conform
Assay of chemical contents
C		Mn		Si		P		S
0.70-0.72		0.50-0.60		0.17-0.26		0.006-0.016		0.005-0.018
