0.78MM Diameter Copper coated Tire Bead Wire , 450 Straightness

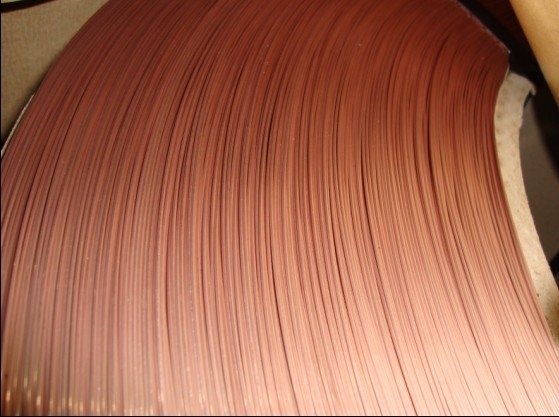

Large Image : 0.78MM Diameter Copper coated Tire Bead Wire , 450 Straightness Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shengda
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	20 MT
Packaging Details:	Z2
Delivery Time:	With 20 days after confirmed purchase order
Payment Terms:	L/C at sight ,T/T in advance,D/P at sight
Supply Ability:	Monthly 6000 Mt

Contact Now

Detailed Product Description

Tensile Strength (Mpa):	2156	Elongation At Break (%):	8.8
Diameter(mm):	0.79	Surface Quality:	Coating Smooth And Uniform
Straightness:	450	Torsion(360°/200d):	59
Cu(%):	99.3	Application:	Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles
Feature:	Bronze Coated, Durable, Normal Tensile, Rustproof	Yield Rate %:	90.1
High Light:	carbon steel wire , bead wire tire , high carbon steel wire

0.78MM Diameter Copper coated Tire Bead Wire , 450 Straightness

1. Copper coated

2. Coating Smooth and uniform

3. High tensile

Description:

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.

Specifications:

Description	BEAD WIRE		Reference		GB/T14450- 2008		Diameter		Φ0.78mm
Item			Standard				Result
Diameter(mm)			0.78±0.02				0.79
Surface Quality			Coating Smooth and uniform				conform
Straightness			The property of a 3 meter long wire to be straightness at a 600mm-distance of between Straight parallel lines				450
Tensile(Mpa)			≥1850				2156
Elongation(%)			≥5				8.8
Torsion(360°/200d)			≥50				59
Cu (%)			≥97				99.3
Yield Rate %			＞80				90.1
Sn (%)			0.3-3.0				0.70
Adhesion			≥685N/50mm				948N/50mm
Assay of chemical contents
C		Mn		Si		P		S
0.68-0.71		0.5-0.60		0.17-0.28		0.006-0.018		0.005-0.019
