Product Details:
Payment & Shipping Terms:
|
Yield Rate: | 93.0-96.0% | Break Force (N): | 1990-2160 |
---|---|---|---|
Application: | Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles | Feature: | Bronze Coated, Durable, Normal Tensile, Rustproof, Waterproof |
High Light: | carbon steel wire,bead wire tire,high carbon steel wire |

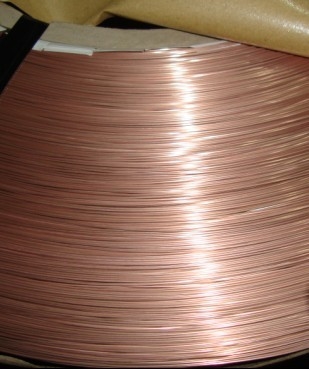

Coating Smooth Surface Steel Bead Wire With Yield Rate 96%
1. Great break force
2. Yield rate 94%
3. Quick delivery time
Description:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ0.89mm |
||||
Item |
Standard |
Result |
|||||||
Diameter(mm) |
0.89±0.02 |
0.87-0.91 |
|||||||
Break force (N) |
≥1950 |
1990-2160 |
|||||||
Yield rate (%) |
93.0-96.0 |
93.3-94.9 |
|||||||
Elongation at break(%) |
≥5.0 |
7.0-8.5 |
|||||||
Torsion(360°/200d) |
≥50 |
59-75 |
|||||||
Residual torsion (° /9m) |
≯360 |
90-120 |
|||||||
Bronze coated(g/kg) |
0.35-0.65 |
0.40-0.51 |
|||||||
Sn (%) |
0.5-3.0 |
0.7-1.5 |
|||||||
Straightness (mm/3m) |
≤500 |
180-460 |
|||||||
Adhesion (N/50mm) |
≥1200 |
1242 |
|||||||
Surface Quality |
Coating Smooth and uniform |
conform |
|||||||
Assay of chemical contents |
|||||||||
C |
Mn |
Si |
P |
S |
|||||
0.70-0.72 |
0.50-0.60 |
0.17-0.26 |
0.006-0.016 |
0.005-0.018 |
