Product Details:
Payment & Shipping Terms:
|
Tensile Strength (Mpa): | 1980-2130 | Elongation At Break (%): | 8.5-9.2 |
---|---|---|---|
Bronze Coated(g/kg): | 0.40-0.50 | Diameter(mm): | 0.94-0.96 |
Surface Quality: | Coating Smooth And Uniform | Straightness: | 120-400 |
Yield Ratio: | 93.4-94.9 | Torsion(360°/200d): | 31-42 |
Cu(%): | 98.6-99.2 | Application: | Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles |
Feature: | Bronze Coated, Durable, Normal Tensile, Rustproof | ||
High Light: | carbon steel wire,bead wire tire,high carbon steel wire |

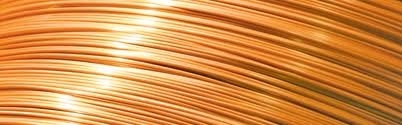

400 Straightness Steel Bead Wire Φ0.95MM , Six Steel Belts Fixed
400 straightness bead wire 0.95mm
Six steel belts fixed

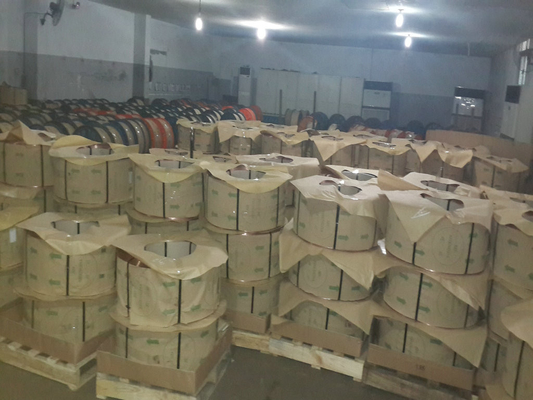

Perfect package
Description:

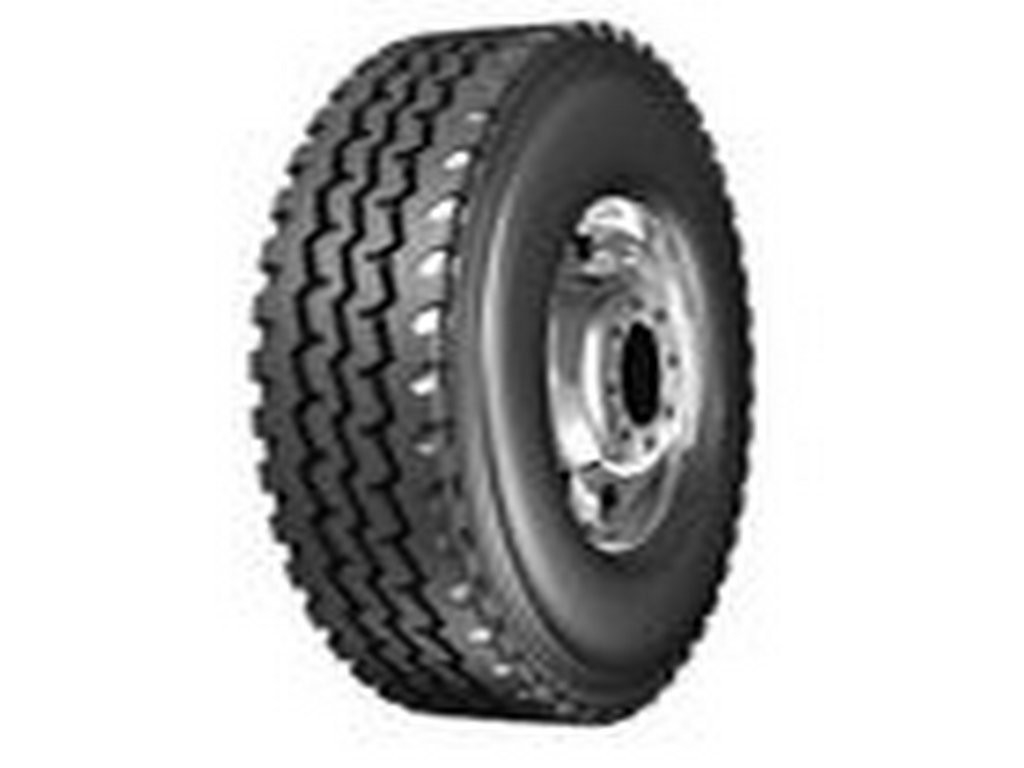

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ0.95mm |
||||
Item |
Standard |
Result |
|||||||
Diameter(mm) |
0.94-0.97 |
0.94-0.96 |
|||||||
Surface Quality |
Coating Smooth and uniform |
conform |
|||||||
Straightness |
≤400 |
120-400 |
|||||||
Yield ratio |
92.0-95.0 |
93.4-94.9 |
|||||||
Tensile(Mpa) |
≥1850 |
1980-2130 |
|||||||
Elongation(%) |
≥5 |
8.5-9.2 |
|||||||
Torsion(360°/200d) |
≥30 |
31-42 |
|||||||
Bronze coated(g/kg) |
0.35-0.65 |
0.40-0.50 |
|||||||
Cu (%) |
97-99 |
98.6-99.2 |
|||||||
No. of Joints |
2 |
0 |
|||||||
Sn (%) |
0.5-3.0 |
0.8-1.40 |
|||||||
Adhesion |
≥932N/50mm |
1496N/50mm |
|||||||
Assay of chemical contents |
|||||||||
C |
Mn |
Si |
P |
S |
|||||
0.70-0.72 |
0.5-0.60 |
0.17-0.30 |
0.006-0.015 |
0.005-0.017 |
