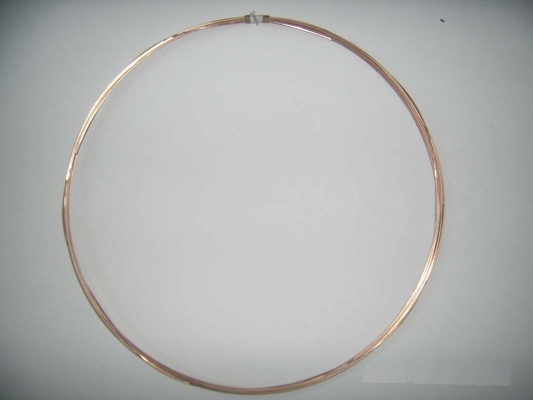

Φ0.95MM Carbon Copper Clad Steel Wire 2130Mpa For Motorcycles

Large Image : Φ0.95MM Carbon Copper Clad Steel Wire 2130Mpa For Motorcycles Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shengda
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	20 MT
Packaging Details:	Z2
Delivery Time:	With 20 days after confirmed purchase order
Payment Terms:	L/C at sight ,T/T in advance,D/P at sight
Supply Ability:	Monthly 6000 Mt

Contact Now

Detailed Product Description

Straightness:	120-400	Elongation(%):	8.5-9.2
Application:	Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles	Feature:	Bronze Coated, Durable, Rustproof, Waterproof
Tensile(Mpa):	1980-2130	Torsion(360°/200d):	31-42
Bronze Coated(g/kg):	0.40-0.50	Adhesion:	1496N/50mm
High Light:	copper coated steel wire , coated steel wire , low carbon steel wire

Φ0.95MM Carbon Copper Clad Steel Wire 2130Mpa For Motorcycles

Description:

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.

Specifications:

Description	BEAD WIRE		Reference		GB/T14450- 2008		Diameter		Φ0.95mm
Item			Standard				Result
Diameter(mm)			0.94-0.97				0.94-0.96
Surface Quality			Coating Smooth and uniform				conform
Straightness			≤400				120-400
Yield ratio			92.0-95.0				93.4-94.9
Tensile(Mpa)			≥1850				1980-2130
Elongation(%)			≥5				8.5-9.2
Torsion(360°/200d)			≥30				31-42
Bronze coated(g/kg)			0.35-0.65				0.40-0.50
Cu (%)			97-99				98.6-99.2
No. of Joints			2				0
Sn (%)			0.5-3.0				0.8-1.40
Adhesion			≥932N/50mm				1496N/50mm
Assay of chemical contents
C		Mn		Si		P		S
0.68-1.3		0.5-0.60		0.17-0.30		0.006-0.015		0.005-0.017
