High Tensile Φ0.95mm Copper Clad Steel Wire For Car Tire Bead Wire

Large Image : High Tensile Φ0.95mm Copper Clad Steel Wire For Car Tire Bead Wire Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shengda
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	20 MT
Packaging Details:	Z2
Delivery Time:	With 20 days after confirmed purchase order
Payment Terms:	L/C at sight ,T/T in advance,D/P at sight
Supply Ability:	Monthly 6000 Mt

Contact Now

Detailed Product Description

Straightness:	120-400	Elongation(%):	8.5-9.2
Application:	Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles	Feature:	Bronze Coated, Durable, High Tensile, Rustproof, Waterproof
Diameter(mm):	0.94-0.96	Yield Ratio:	93.4-94.9
Tensile(Mpa):	2150-2230	Elongation(%):	8.5-9.2
High Light:	copper coated steel wire , coated steel wire , low carbon steel wire

High Tensile Φ0.95mm Copper Clad Steel Wire For Car Tire Bead Wire

High tensile 2230 mpa

Inside the waterproof packing

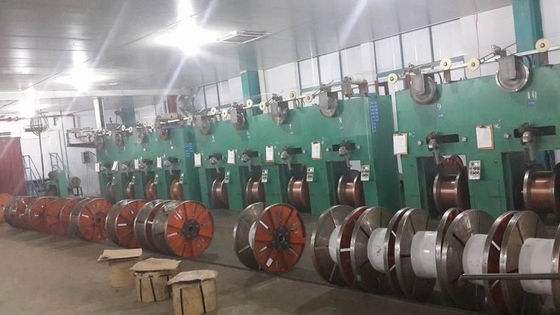

6000MT monthly production

Description:

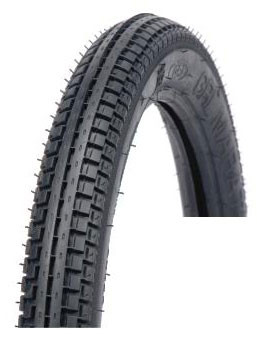

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.

Specifications:

Description	BEAD WIRE		Reference		GB/T14450- 2008		Diameter		Φ0.95mmHT
Item			Standard				Result
Diameter(mm)			0.94-0.97				0.94-0.96
Straightness			≤400				120-400
Yield ratio			92.0-95.0				93.4-94.9
Tensile(Mpa)			≥2100				2150-2230
Elongation(%)			≥5				8.5-9.2
Torsion(360°/200d)			≥30				31-42
Bronze coated(g/kg)			0.35-0.65				0.40-0.50
Cu (%)			97-99				98.6-99.2
No. of Joints			2				0
Sn (%)			0.5-3.0				0.8-1.40
Adhesion			≥932N/50mm				1496N/50mm
Assay of chemical contents
C		Mn		Si		P		S
0.72-1.50		0.5-0.60		0.17-0.30		0.006-0.015		0.005-0.017
Surface Quality			Coating Smooth and uniform				conform
