Brass Coated Annealed Steel Wire , Six Steel Belts Fixed

Large Image : Brass Coated Annealed Steel Wire , Six Steel Belts Fixed Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shengda
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	20 MT
Packaging Details:	Z2
Delivery Time:	With 20 days after confirmed purchase order
Payment Terms:	L/C at sight ,T/T in advance,D/P at sight
Supply Ability:	Monthly 6000 Mt

Contact Now

Detailed Product Description

Tensile Strength (Mpa):	2150-2230	Elongation At Break (%):	8.5-9.2
Diameter(mm):	0.94-0.96	Application:	Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles
Feature:	Bronze Coated, Durable, High Tensile, Rustproof, Waterproof	Yield Ratio:	93.4-94.9
Torsion(360°/200d):	31-42	Bronze Coated(g/kg):	0.40-0.50
High Light:	annealed wire , high tensile steel wire , coated steel wire

Brass Coated Annealed Steel Wire , Six Steel Belts Fixed

Descrition:

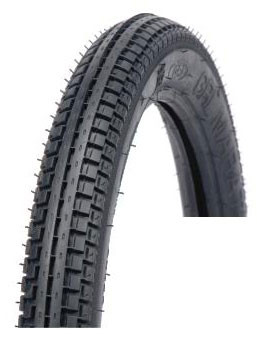

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.

Specifications:

Description	BEAD WIRE		Reference		GB/T14450- 2008		Diameter		Φ0.95mmHT
Item			Standard				Result
Diameter(mm)			0.94-0.97				0.94-0.96
Straightness			≤400				120-400
Yield ratio			92.0-95.0				93.4-94.9
Tensile(Mpa)			≥2100				2150-2230
Elongation(%)			≥5				8.5-9.2
Torsion(360°/200d)			≥30				31-42
Bronze coated(g/kg)			0.35-0.65				0.40-0.50
Cu (%)			97-99				98.6-99.2
No. of Joints			2				0
Sn (%)			0.5-3.0				0.8-1.40
Adhesion			≥932N/50mm				1496N/50mm
Assay of chemical contents
C		Mn		Si		P		S
0.70-0.72		0.5-0.60		0.17-0.30		0.006-0.015		0.005-0.017
Surface Quality			Coating Smooth and uniform				conform
