Vehicles Annealed Steel Wire 1.8MMHT For Tire Bead Wire
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Elongation At Break (%): | 5.0-6.0 | Diameter(mm): | 1.8mmHT |
|---|---|---|---|
| Breaking Force (Mpa): | 2050-2200 | Application: | Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles |
| Feature: | Bronze Coated, Durable, High Tensile, Rustproof, Waterproof | ||
| High Light: | high tensile steel wire,annealing carbon steel,low carbon steel wire |
||

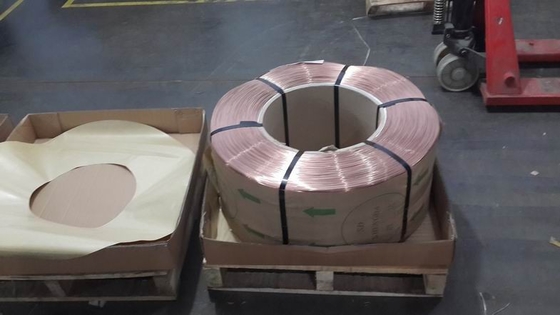

Vehicles Annealed Steel Wire Φ1.8MM For Tire Bead Wire
Quick Detail:
- Type: Bead wire
- Diameter:1.8mmHT
- Breaking force (Mpa):2050-2200
- Elongation at break(%):5.0-6.0
- Yield ratio(%):85.4-87.6
- Bronze coated(g/kg):0.32-0.36
- Torsion(360°/100d):29-35
Description:

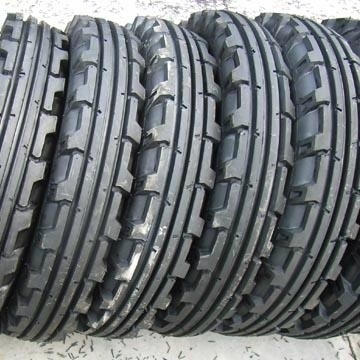

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
|
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ 1.8mmHT |
|
Item |
Standard |
Result |
|||
|
Diameter(mm) |
1.8± 0.02 |
1.78-1.82 |
|||
|
Breaking force (Mpa) |
≥2050 |
2050-2200 |
|||
|
Elongation at break(%) |
≥5.0 |
5.0-6.0 |
|||
|
Yield ratio(%) |
≥85 |
85.4-87.6 |
|||
|
Torsion(360°/100d) |
≥25 |
29-35 |
|||
|
Bronze coated(g/kg) |
0.20-0.40 |
0.32-0.36 |
|||
|
Sn (%) |
0.3-3.0 |
1.7 |
|||
|
Cu(%) |
≥97 |
98.3 |
|||
|
Surface Quality |
Coating Smooth and uniform |
conform |
|||
Competitive advantage:
- Elongation at break (6.0%)
- Automatic computer control system
- specialization product line
