Carbon Φ1.83mm Annealed Steel Wire Bronze Coated For Planes
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Elongation At Break (%): | 5.0-6.0 | Diameter(mm): | 1.81-1.85 |
|---|---|---|---|
| Breaking Force (Mpa): | 2050-2200 | Application: | Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles |
| Feature: | Bronze Coated, Durable, High Tensile, Rustproof, Waterproof | Yield Ratio(%): | 85.4-87.6 |
| Torsion(360°/100d): | 29-35 | Bronze Coated(g/kg): | 0.32-0.36 |
| High Light: | annealed steel,annealed wire,annealing of steel |
||

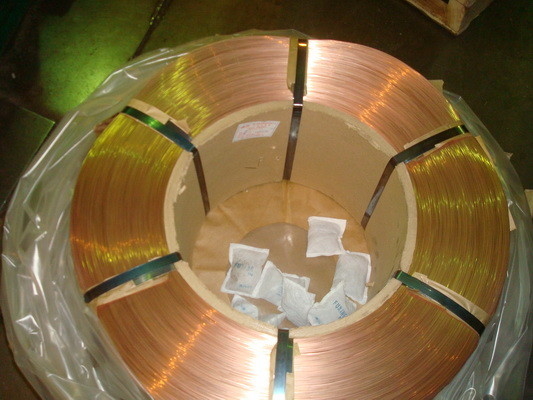

Carbon Φ1.83mm Annealed Steel Wire Bronze Coated For Planes
Description:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
|
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ 1.83mmHT |
|
Item |
Standard |
Result |
|||
|
Diameter(mm) |
1.83± 0.02 |
1.81-1.85 |
|||
|
Breaking force (Mpa) |
≥2050 |
2050-2200 |
|||
|
Elongation at break(%) |
≥5.0 |
5.0-6.0 |
|||
|
Yield ratio(%) |
≥85 |
85.4-87.6 |
|||
|
Torsion(360°/100d) |
≥25 |
29-35 |
|||
|
Bronze coated(g/kg) |
0.20-0.40 |
0.32-0.36 |
|||
|
Sn (%) |
0.3-3.0 |
1.7 |
|||
|
Cu(%) |
≥97 |
98.3 |
|||
|
Surface Quality |
Coating Smooth and uniform |
conform |
|||
Competitive advantage
- Elongation at break (6.0%)
- Automatic computer control system
- specialization product line
