High Tensile Steel Wire For Vehicles , Coating Smooth Surface
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Tensile Strength (Mpa): | 2256 | Application: | Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles |
|---|---|---|---|
| Feature: | Bronze Coated, Durable, High Tensile, Rustproof, Waterproof | Diameter(mm): | 0.79 |
| Surface Quality: | Coating Smooth And Uniform | Straightness: | 450 |
| Elongation(%): | 9.9 | Torsion(360°/200d): | 65 |
| High Light: | Tire Bead Wire,Bronze Coate Bead Wire |
||

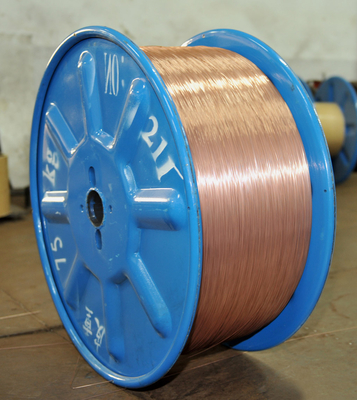

High Tensile Steel Wire For Vehicles , Coating Smooth Surface
1. High tensile
2. Good adhesion
3. Super straightness
Description:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
|
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ0.78mmHT |
||||
|
Item |
Standard |
Result |
|||||||
|
Diameter(mm) |
0.78±0.02 |
0.79 |
|||||||
|
Surface Quality |
Coating Smooth and uniform |
conform |
|||||||
|
Straightness |
The property of a 3 meter long wire to be straightness at a 600mm-distance of between Straight parallel lines |
450 |
|||||||
|
Tensile(Mpa) |
≥2100 |
2256 |
|||||||
|
Elongation(%) |
≥5 |
9.9 |
|||||||
|
Torsion(360°/200d) |
≥50 |
65 |
|||||||
|
Cu (%) |
≥97 |
99.3 |
|||||||
|
Yield Rate % |
＞85 |
90.1 |
|||||||
|
Sn (%) |
0.3-3.0 |
0.70 |
|||||||
|
Adhesion |
≥685N/50mm |
948N/50mm |
|||||||
|
Assay of chemical contents |
|||||||||
|
C |
Mn |
Si |
P |
S |
|||||
|
0.68-0.71 |
0.5-0.60 |
0.17-0.28 |
0.006-0.018 |
0.005-0.019 |
|||||
