ISO9001 Cold Drawn Steel Wire Φ1.83mm With Coating Smooth Surface
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Yield Ratio: | 85.4-87.6 | Application: | Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles |
|---|---|---|---|
| Feature: | Bronze Coated, Durable, Rustproof, Waterproof | Diameter(mm): | 1.81-1.85 |
| Breaking Force (Mpa): | 1800-1860 | Elongation At Break(%): | 5.0-6.0 |
| Torsion(360°/100d): | 29-35 | Bronze Coated(g/kg): | 0.32-0.36 |
| High Light: | mild steel wire,tire bead wire,cold drawn wire |
||
ISO9001 Cold Drawn Steel Wire Φ1.83mm With Coating Smooth Surface
Bronze coated 0.36g/kg
Torsion(360°/100d) 35times

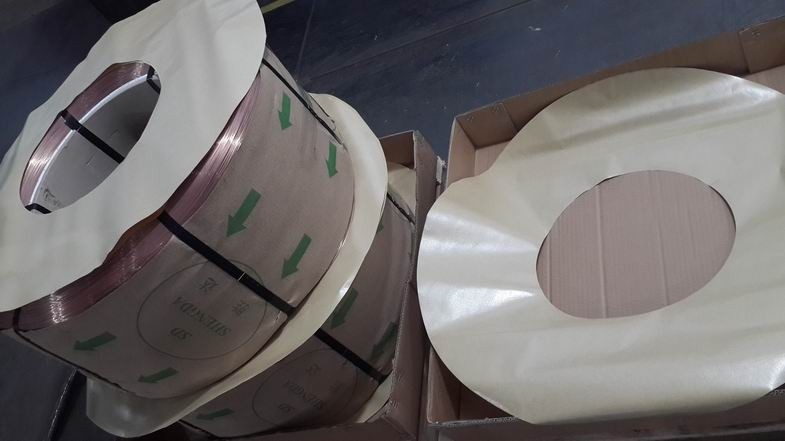

Perfect package
Description:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
|
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ 1.83mm |
|
Item |
Standard |
Result |
|||
|
Diameter(mm) |
1.83± 0.02 |
1.81-1.85 |
|||
|
Breaking force (Mpa) |
≥1800 |
1800-1860 |
|||
|
Elongation at break(%) |
≥5.0 |
5.0-6.0 |
|||
|
Yield ratio(%) |
≥85 |
85.4-87.6 |
|||
|
Torsion(360°/100d) |
≥25 |
29-35 |
|||
|
Bronze coated(g/kg) |
0.20-0.40 |
0.32-0.36 |
|||
|
Sn (%) |
0.3-3.0 |
1.7 |
|||
|
Cu(%) |
≥97 |
98.3 |
|||
|
Surface Quality |
Coating Smooth and uniform |
conform |
|||
