High Tensile Cold Drawn Steel Wire For Car Tire Bead Wire
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Tensile Strength (Mpa): | 2150-2230 | Yield Ratio: | 93.4-94.9 |
|---|---|---|---|
| Application: | Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles | Feature: | Bronze Coated, Durable, Rustproof, Waterproof |
| Diameter(mm): | 0.94-0.96 | Straightness: | 120-400 |
| Elongation(%): | 8.5-9.2 | Torsion(360°/200d): | 31-42 |
| High Light: | Cold Drawn Steel Wire,Bronze Coate Bead Wire |
||
High Tensile Cold Drawn Steel Wire For Car Tire Bead Wire
High tensile 2230 mpa

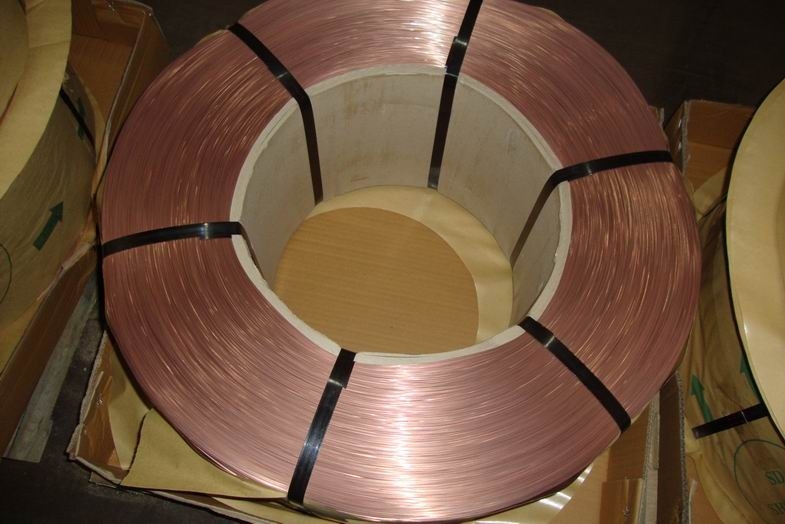

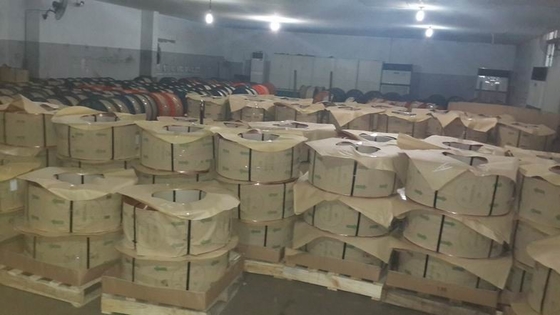

Inside the waterproof packing
6000MT monthly production
Description:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
|
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ0.95mmHT |
||||
|
Item |
Standard |
Result |
|||||||
|
Diameter(mm) |
0.94-0.97 |
0.94-0.96 |
|||||||
|
Straightness |
≤400 |
120-400 |
|||||||
|
Yield ratio |
92.0-95.0 |
93.4-94.9 |
|||||||
|
Tensile(Mpa) |
≥2100 |
2150-2230 |
|||||||
|
Elongation(%) |
≥5 |
8.5-9.2 |
|||||||
|
Torsion(360°/200d) |
≥30 |
31-42 |
|||||||
|
Bronze coated(g/kg) |
0.35-0.65 |
0.40-0.50 |
|||||||
|
Cu (%) |
97-99 |
98.6-99.2 |
|||||||
|
No. of Joints |
2 |
0 |
|||||||
|
Sn (%) |
0.5-3.0 |
0.8-1.40 |
|||||||
|
Adhesion |
≥932N/50mm |
1496N/50mm |
|||||||
|
Assay of chemical contents |
|||||||||
|
C |
Mn |
Si |
P |
S |
|||||
|
0.70-0.72 |
0.5-0.60 |
0.17-0.30 |
0.006-0.015 |
0.005-0.017 |
|||||
|
Surface Quality |
Coating Smooth and uniform |
conform |
|||||||
