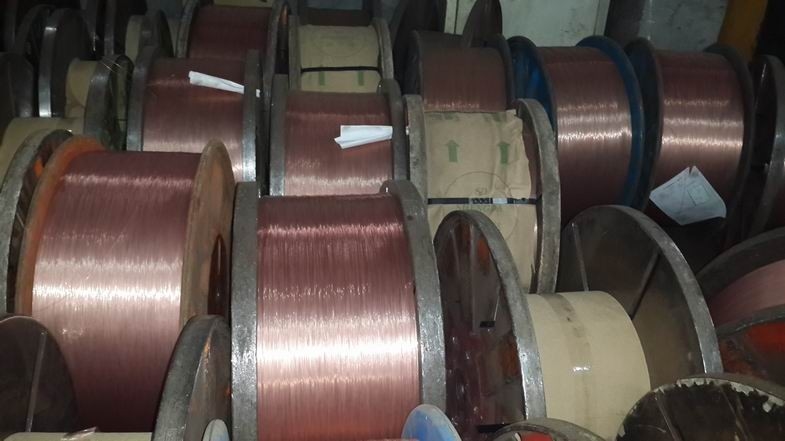

Rustproof Φ0.96MM Cold Drawn Steel Wire For Motorcycles

Large Image : Rustproof Φ0.96MM Cold Drawn Steel Wire For Motorcycles Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shengda
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	20 MT
Packaging Details:	Z2
Delivery Time:	With 20 days after confirmed purchase order
Payment Terms:	L/C at sight ,T/T in advance,D/P at sight
Supply Ability:	Monthly 6000 Mt

Contact Now

Detailed Product Description

Tensile Strength (Mpa):	1920-2100	Yield Ratio:	92.7-93.9
Application:	Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles	Feature:	Bronze Coated, Durable, Normal Tensile, Rustproof, Waterproof
Diameter(mm):	0.94-0.97	Elongation At Break (%):	7.2 -8.8
Torsion (360°/200d):	30-40	Bronze Coated(g/kg):	0.40-0.52
Straightness (mm/3m):	120-400	Surface Quality:	Coating Smooth And Uniform
High Light:	cold drawn wire , cold drawing steel , cold drawing of wire

Rustproof Φ0.96MM Cold Drawn Steel Wire For Motorcycles

2100mpa tensile strength

Copper coated smoothly

6000MT monthly production

Description:

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.

Specifications:

Description	BEAD WIRE		Reference		GB/T14450- 2008		Diameter		Φ0.96mm
Item			Standard				Result
Diameter(mm)			0.96±0.02				0.94-0.97
Tensile strength (Mpa)			≥1850				1920-2100
Yield ratio (%)			92.0-95.0				92.7-93.9
Elongation at break (%)			≥5				7.2 -8.8
Torsion (360°/200d)			≥28				30-40
Residual torsion (°/9m)			≯360				90-120
Bronze coated(g/kg)			0.35-0.65				0.40-0.52
Cu (%)			≥97				98.3-99.2
Sn (%)			0.5-3.0				0.80-1.70
Straightness (mm/3m)			≤400				120-400
Adhesion (N/50mm)			≥932				1255
Surface Quality			Coating Smooth and uniform				conform
Assay of chemical contents
C		Mn		Si		P		S
0.70-0.72		0.50-0.60		0.17-0.30		0.006-0.016		0.005-0.018
