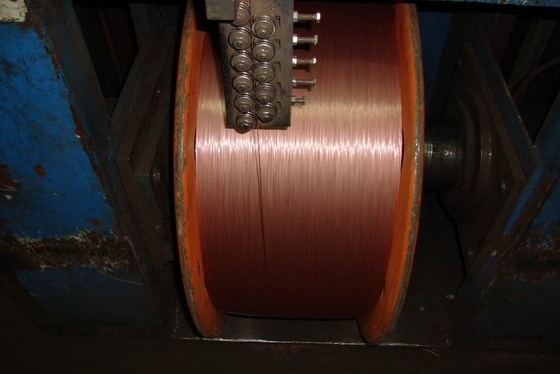

High Tensile Cold Drawn Steel Wire Φ0.96mm For Motorcycles

Name: High Tensile Cold Drawn Steel Wire Φ0.96mm For Motorcycles
Brand: Shengda

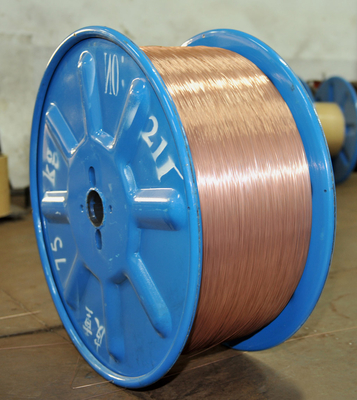

Large Image : High Tensile Cold Drawn Steel Wire Φ0.96mm For Motorcycles Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shengda
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	20 MT
Packaging Details:	Z2
Delivery Time:	With 20 days after confirmed purchase order
Payment Terms:	L/C at sight ,T/T in advance,D/P at sight
Supply Ability:	Monthly 6000 Mt

Contact Now

Detailed Product Description

Tensile Strength (Mpa):	2150-2300	Application:	Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles
Feature:	Bronze Coated, Durable, High Tensile, Rustproof	Diameter(mm):	0.94-0.97
Yield Ratio (%):	92.7-93.9	Elongation At Break (%):	7.2 -8.8
Torsion (360°/200d):	30-40	Bronze Coated(g/kg):	0.40-0.52
High Light:	cold drawn wire , cold drawing steel , cold drawing of wire

High Tensile Cold Drawn Steel Wire Φ0.96mm For Motorcycles

2300mpa tensile strength

Cu 99.2% coated

6000MT monthly production

Description:

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.

Specifications:

Description	BEAD WIRE		Reference		GB/T14450- 2008		Diameter		Φ0.96mmHT
Item			Standard				Result
Diameter(mm)			0.96±0.02				0.94-0.97
Tensile strength (Mpa)			≥2100				2150-2300
Yield ratio (%)			92.0-95.0				92.7-93.9
Elongation at break (%)			≥5				7.2 -8.8
Torsion (360°/200d)			≥28				30-40
Residual torsion (°/9m)			≯360				90-120
Bronze coated(g/kg)			0.35-0.65				0.40-0.52
Cu (%)			≥97				98.3-99.2
Sn (%)			0.5-3.0				0.80-1.70
Straightness (mm/3m)			≤400				120-400
Adhesion (N/50mm)			≥932				1255
Surface Quality			Coating Smooth and uniform				conform
Assay of chemical contents
C		Mn		Si		P		S
0.70-0.72		0.50-0.60		0.17-0.30		0.006-0.016		0.005-0.018
