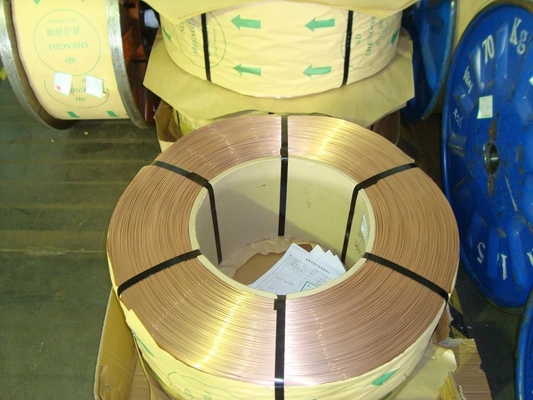

Durable Bronze Coated Cold Drawn Steel Wire , 1MM Diameter
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Tensile Strength (Mpa): | 1910-2030 | Application: | Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles |
|---|---|---|---|
| Feature: | Bronze Coated, Durable, Normal Tensile, Rustproof, Waterproof | Diameter(mm): | 0.99-1.01 |
| Elongation At Break (%): | 5.0-6.0 | Torsion(360°/100d): | 31-39 |
| Bronze Coated(g/kg): | 0.41-0.49 | Straightness(mm/3m): | 190-400 |
| High Light: | cold drawn wire,cold drawing steel,cold drawing of wire |
||
superior quality
high copper 0.49g/kg
Moisture proof packing
Descrition:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
|
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ1.0mm |
|
Item |
Standard |
Result |
|||
|
Diameter(mm) |
1.0±0.02 |
0.99-1.01 |
|||
|
Tensile strength (Mpa) |
≥1900 |
1910-2030 |
|||
|
Elongation at break (%) |
≥5 |
5.0-6.0 |
|||
|
Torsion(360°/100d) |
≥25 |
31-39 |
|||
|
Bronze coated(g/kg) |
0.30-0.75 |
0.41-0.49 |
|||
|
Straightness(mm/3m) |
≤500 |
190-400 |
|||
|
Surface Quality |
Coating Smooth and uniform |
conform |
|||
