Tyre Cold Drawn Steel Wire Φ1.2mm , Breaking Force 1800Mpa
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Yield Ratio: | 85.4-87.6 | Application: | Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles |
|---|---|---|---|
| Feature: | Bronze Coated, Durable, Normal Tensile, Rustproof, Waterproof | Diameter(mm): | 1.17-1.20 |
| Breaking Force (Mpa): | 1800-1860 | Elongation At Break(%): | 5.0-6.0 |
| Torsion(360°/100d): | 29-35 | Bronze Coated(g/kg): | 0.32-0.36 |
| High Light: | cold drawn wire,cold drawing steel,cold drawing of wire |
||

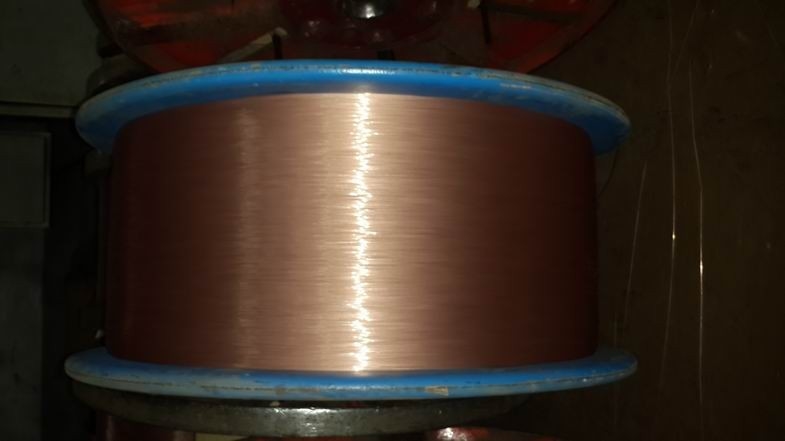

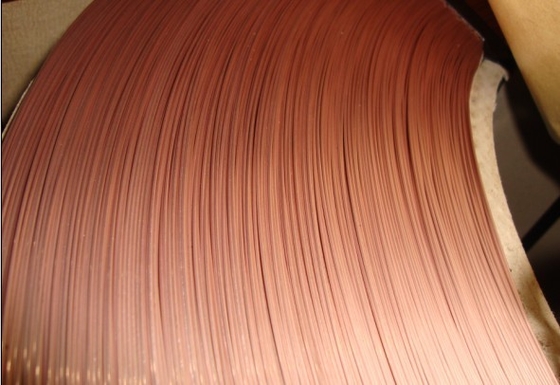

Tyre Cold Drawn Steel Wire Φ1.2mm , Breaking Force 1800Mpa
First-class material
High tensile 2250mpa
Elongation at break 6.0%
Description:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
|
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ 1.20mm |
|
Item |
Standard |
Result |
|||
|
Diameter(mm) |
1.17-1.20 |
1.17-1.20 |
|||
|
Breaking force (Mpa) |
≥1800 |
1800-1860 |
|||
|
Elongation at break(%) |
≥5.0 |
5.0-6.0 |
|||
|
Yield ratio(%) |
≥80 |
85.4-87.6 |
|||
|
Torsion(360°/100d) |
≥26 |
29-35 |
|||
|
Bronze coated(g/kg) |
0.30-0.65 |
0.32-0.36 |
|||
|
Sn (%) |
0.3-3.0 |
1.7 |
|||
|
Cu(%) |
≥97 |
98.3 |
|||
|
Straightness(mm/3m) |
≤600 |
200-500 |
|||
|
Surface Quality |
Coating Smooth and uniform |
conform |
|||
