Product Details:
Payment & Shipping Terms:
|
Bronze Coated(g/kg): | 0.40-0.50 | Diameter(mm): | Φ0.95mm |
---|---|---|---|
Straightness: | 120-400 | Surface Quality: | Conform |
Torsion(360°/100d): | 31-42 | Product Name: | Steel Bead Wire |
High Light: | tyre bead wire,low carbon steel wire,tyre steel wire |

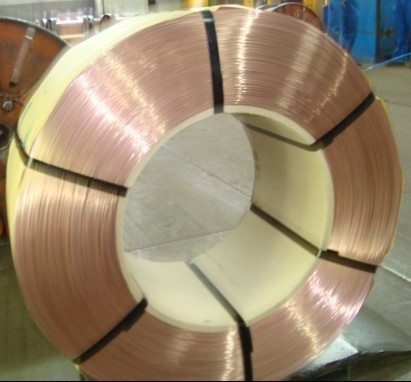

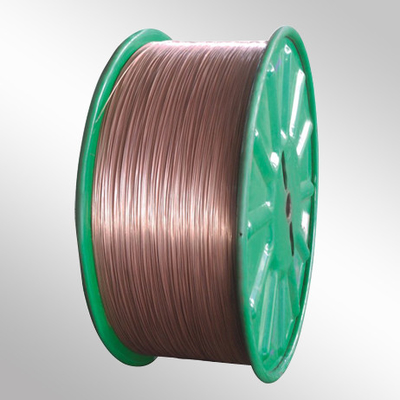

Φ0.95mm Carbon Copperize Tire Bead Wire , 400 Straightness Steel
Carbon Steel Copperize Tire Bead Wire
Description:

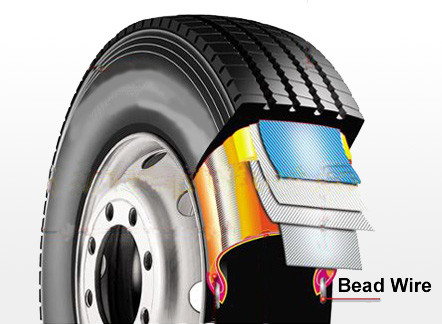

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
Steel grade:70#,72#,80#,82#
Standard: AISI,ASTM,GB,JIS
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ0.95mm |
||||
Item |
Standard |
Result |
|||||||
Diameter(mm) |
0.94-0.97 |
0.94-0.96 |
|||||||
Surface Quality |
Coating Smooth and uniform |
conform |
|||||||
Straightness |
≤400 |
120-400 |
|||||||
Yield ratio |
92.0-95.0 |
93.4-94.9 |
|||||||
Tensile(Mpa) |
≥1850 |
1980-2130 |
|||||||
Elongation(%) |
≥5 |
8.5-9.2 |
|||||||
Torsion(360°/200d) |
≥30 |
31-42 |
|||||||
Bronze coated(g/kg) |
0.35-0.65 |
0.40-0.50 |
|||||||
Cu (%) |
97-99 |
98.6-99.2 |
|||||||
No. of Joints |
2 |
0 |
|||||||
Sn (%) |
0.5-3.0 |
0.8-1.40 |
|||||||
Adhesion |
≥932N/50mm |
1496N/50mm |
|||||||
Assay of chemical contents |
|||||||||
C |
Mn |
Si |
P |
S |
|||||
0.70-0.72 |
0.5-0.60 |
0.17-0.30 |
0.006-0.015 |
0.005-0.017 |
Competitive advantage:
