1.2mm Copperize Tire Bead Wire
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Diameter(mm): | Φ 1.20mm | Breaking Force (Mpa): | 1800-1860 |
|---|---|---|---|
| Product Name: | Steel Bead Wire | Breaking Force: | 2250map |
| Feature: | High Tensile | ODM/OEM: | Yes |
| High Light: | tyre bead wire,low carbon steel wire,tyre steel wire |
||

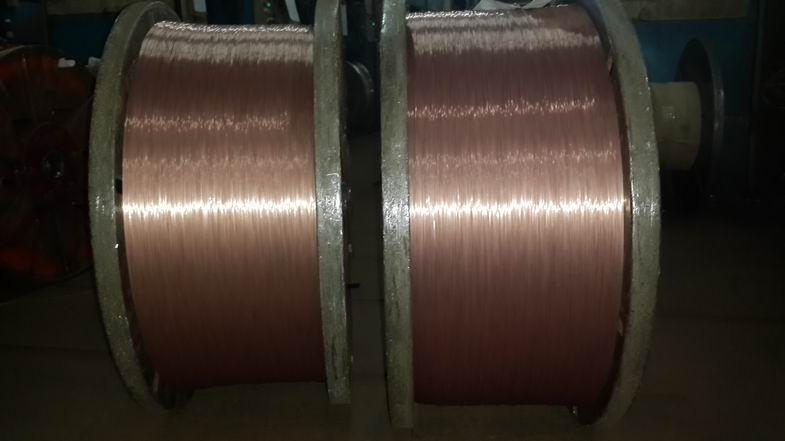

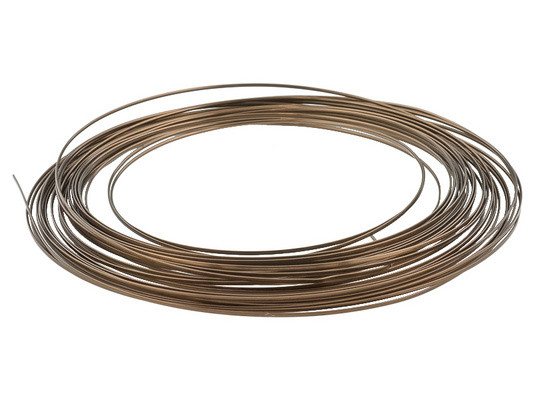

1.2mm Copperize Tire Bead Wire
Steel grade:70#,72#,80#,82#
Standard: AISI,ASTM,GB,JIS
first-class material
high tensile 2250map
Elongation at break 6.0%
Descrition:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
|
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ 1.20mm |
|
Item |
Standard |
Result |
|||
|
Diameter(mm) |
1.17-1.20 |
1.17-1.20 |
|||
|
Breaking force (Mpa) |
≥1800 |
1800-1860 |
|||
|
Elongation at break(%) |
≥5.0 |
5.0-6.0 |
|||
|
Yield ratio(%) |
≥80 |
85.4-87.6 |
|||
|
Torsion(360°/100d) |
≥26 |
29-35 |
|||
|
Bronze coated(g/kg) |
0.30-0.65 |
0..32-0.36 |
|||
|
Sn (%) |
0.3-3.0 |
1.7 |
|||
|
Cu(%) |
≥97 |
98.3 |
|||
|
Straightness(mm/3m) |
≤600 |
200-500 |
|||
|
Surface Quality |
Coating Smooth and uniform |
conform |
|||
