Breaking Force (Mpa): | 1800-1860 | Straightness: | 200-500 |
---|---|---|---|
Application: | Bike, Bicycle, Automobiles, Motorcycles, Planes, Vehicles | Feature: | Rustproof, Durable, Waterproof, Bronze Coated |
Bronze Coated(g/kg): | 0.68-1.00 | Surface Quality: | Coating Smooth And Uniform |
High Light: | Tire Bead Wire,Steel Bead Wire,Tyre Bead Wire |
Tyre Copper Coated Steel Wire 1.2mm , 2250map Breaking Force High Tensile
First-class material
High tensile 2250map
Elongation at break 6.0%

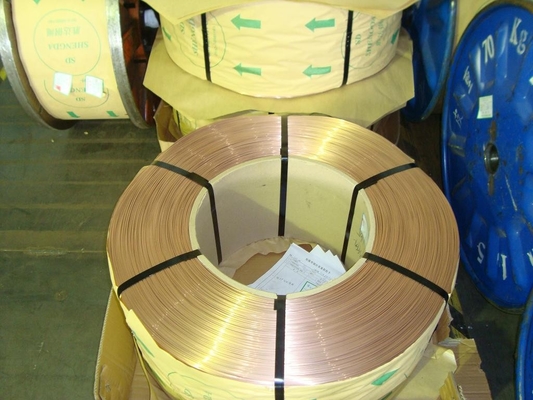

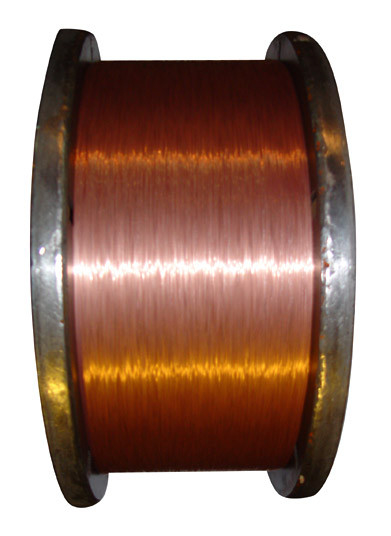

Tire Bead Wire
Description:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
We export and supply high quality Tyre Bead Wire at a reasonable price. Tire Bead Wire is a carbon bronze coated steel wire used in all tires. The main function of bead wire is to hold the tire on the rim and to resist the action of the inflated pressure, which constantly tries to force it off. Tire Bead Wire has various features of high strength and good flexibility. The type of tire and structure of bead rings used, determine the size of bead wire. Tire Bead Wire is applicable at various industries.
Our offered range is widely used in automobile industry, it act as reinforcement and helps to get a proper grip on tyres. Apart from this, clients can avail these products from us in various sizes, as per their varied needs.
Our range of Tyre Bead Steel Wire includes:
Applications
Specifications:
Steel grade:70#,72#,80#,82#
Standard: AISI,ASTM,GB,JIS
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ 1.20mm |
Item |
Standard |
Result |
|||
Diameter(mm) |
1.17-1.20 |
1.17-1.20 |
|||
Breaking force (Mpa) |
≥1800 |
1800-1860 |
|||
Elongation at break(%) |
≥5.0 |
5.0-6.0 |
|||
Yield ratio(%) |
≥80 |
85.4-87.6 |
|||
Torsion(360°/100d) |
≥26 |
29-35 |
|||
Bronze coated(g/kg) |
0.65-1.2 |
0.68-1.00 |
|||
Sn (%) |
0.3-3.0 |
1.7 |
|||
Cu(%) |
≥97 |
98.3 |
|||
Straightness(mm/3m) |
≤600 |
200-500 |
|||
Surface Quality |
Coating Smooth and uniform |
conform |
