Break Force (N): | 2100-2260 | Straightness: | 180-460 |
---|---|---|---|
Application: | Bike, Bicycle, Automobiles, Motorcycles, Planes, Vehicles | Feature: | Normal Tensile, Rustproof, Durable, Waterproof, Bronze Coated |
Diameter(mm): | 0.87-0.91 | Yield Rate (%): | 93.3-94.9 |
Elongation At Break(%): | 7.0-8.5 | Torsion(360°/200d): | 59-75 |
Bronze Coated(g/kg): | 0.40-0.51 | Surface Quality: | Coating Smooth And Uniform |
High Light: | Tyre Bead Wire,Steel Bead Wire,Tire Bead Wire |

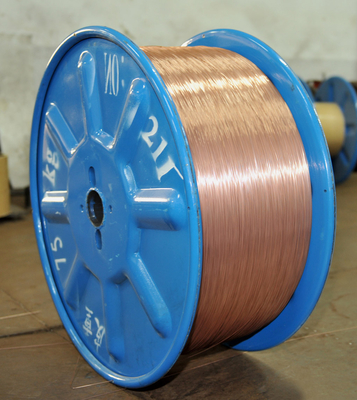

Bicycle Tyre Copper Coated Steel Wire Rope , High Carbon Steel Wires Cu 98.3%
1. High tensile
2. Quick delivery
3. Cu 98.3%
Description:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
We export and supply high quality Tyre Bead Wire at a reasonable price. Tire Bead Wire is a carbon bronze coated steel wire used in all tires. The main function of bead wire is to hold the tire on the rim and to resist the action of the inflated pressure, which constantly tries to force it off. Tire Bead Wire has various features of high strength and good flexibility. The type of tire and structure of bead rings used, determine the size of bead wire. Tire Bead Wire is applicable at various industries.
Our offered range is widely used in automobile industry, it act as reinforcement and helps to get a proper grip on tyres. Apart from this, clients can avail these products from us in various sizes, as per their varied needs.
Our range of Tyre Bead Steel Wire includes:
Applications
Specifications:
Steel grade:70#,72#,80#,82#
Standard: AISI,ASTM,GB,JIS
Description |
steel wire |
Reference |
GB/T14450- 2008 |
Diameter |
Φ0.89mmHT |
||||
Item |
Standard |
Result |
|||||||
Diameter(mm) |
0.89±0.02 |
0.87-0.91 |
|||||||
Break force (N) |
≥2100 |
2100-2260 |
|||||||
Yield rate (%) |
93.0-96.0 |
93.3-94.9 |
|||||||
Elongation at break(%) |
≥5.0 |
7.0-8.5 |
|||||||
Torsion(360°/200d) |
≥50 |
59-75 |
|||||||
Residual torsion (° /9m) |
≯360 |
90-120 |
|||||||
Bronze coated(g/kg) |
0.35-0.65 |
0.40-0.51 |
|||||||
Sn (%) |
0.5-3.0 |
0.7-1.5 |
|||||||
Straightness (mm/3m) |
≤500 |
180-460 |
|||||||
Adhesion (N/50mm) |
≥1200 |
1242 |
|||||||
Surface Quality |
Coating Smooth and uniform |
conform |
|||||||
Assay of chemical contents |
|||||||||
C |
Mn |
Si |
P |
S |
|||||
0.70-1.50 |
0.50-0.60 |
0.17-0.26 |
0.006-0.016 |
0.005-0.018 |
