0.95m Copper Coated Steel Wire

Large Image : 0.95m Copper Coated Steel Wire Get Best Price

Product Details:

Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	20 MT
Packaging Details:	Z2
Delivery Time:	With 20 days after confirmed purchase order
Payment Terms:	L/C at sight ,T/T in advance,D/P at sight
Supply Ability:	Monthly 6000 Mt

Contact Now

Detailed Product Description

Application:	Bike, Bicycle, Automobiles, Motorcycles, Planes, Vehicles	Feature:	Rustproof, Durable, Waterproof, Bronze Coated
Type:	Tire Bead Wire	Steel Grade:	70#,72#,80#,82#
Standard:	AISI,ASTM,GB,JIS	OEM/ODM:	Yes
Highlight:	Tyre Bead Wire , Steel Bead Wire , Tire Bead Wire

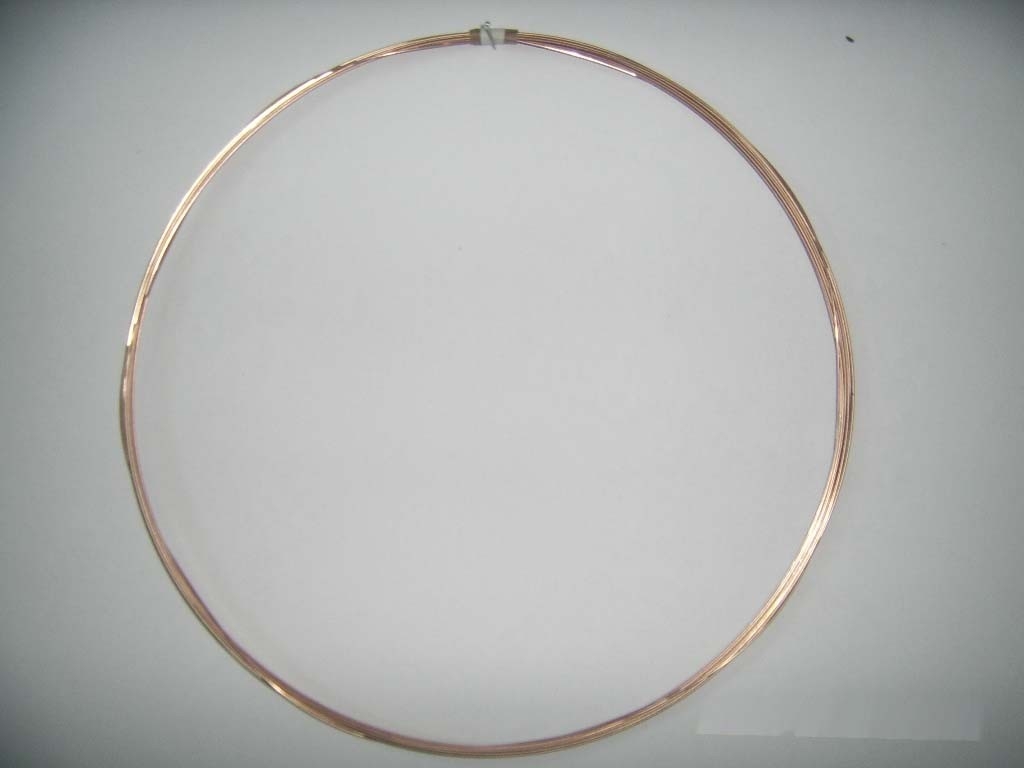

0.95m Copper Coated Steel Wire for Car

400 straightness bead wire 0.95mm
Six steel belts fixed
Perfect package
Steel grade:70#,72#,80#,82#
Standard: AISI,ASTM,GB,JIS

Descrition:

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.

Specifications:

Description	Steel WIRE		Reference		GB/T14450- 2008		Diameter		Φ0.95mm
Item			Standard				Result
Diameter(mm)			0.94-0.97				0.94-0.96
Surface Quality			Coating Smooth and uniform				conform
Straightness			≤400				120-400
Yield ratio			92.0-95.0				93.4-94.9
Tensile(Mpa)			≥1850				1980-2130
Elongation(%)			≥5				8.5-9.2
Torsion(360°/200d)			≥30				31-42
Bronze coated(g/kg)			0.35-0.65				0.40-0.50
Cu (%)			97-99				98.6-99.2
No. of Joints			2				0
Sn (%)			0.5-3.0				0.8-1.40
Adhesion			≥932N/50mm				1496N/50mm
Assay of chemical contents
C		Mn		Si		P		S
0.68-1.3		0.5-0.60		0.17-0.30		0.006-0.015		0.005-0.017
