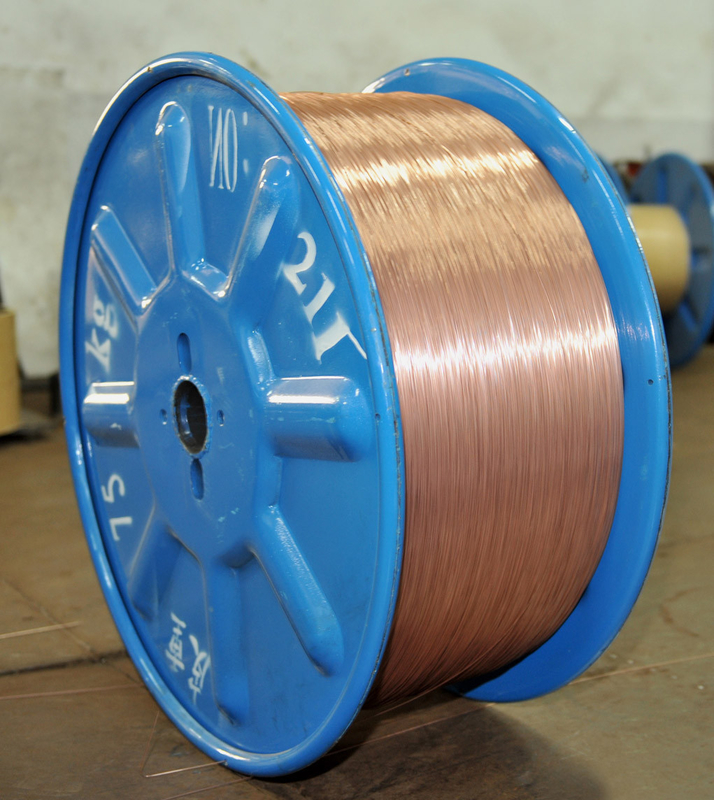

Bronze Copper Coated Steel Wire

Large Image : Bronze Copper Coated Steel Wire Get Best Price

Product Details:

Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	20 MT
Packaging Details:	Z2
Delivery Time:	With 20 days after confirmed purchase order
Payment Terms:	L/C at sight ,T/T in advance,D/P at sight
Supply Ability:	Monthly 6000 Mt

Contact Now

Detailed Product Description

Application:	Bike, Bicycle, Automobiles, Motorcycles, Planes, Vehicles	Feature:	Normal Tensile, Rustproof, Durable, Waterproof, Bronze Coated
Type:	Tire Bead Wire	Steel Grade:	70#,72#,80#,82#
Standard:	AISI,ASTM,GB,JIS	Oem/Odm:	Yes
Highlight:	Tyre Bead Wire , Steel Bead Wire , Tire Bead Wire

Bronze Copper Coated Steel Wire For Bicycle

1. high tensile

2. Quick delivery

3. Cu 98.3%

Descrition:

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.

Specifications:

Steel grade:70#,72#,80#,82#

Standard: AISI,ASTM,GB,JIS

Description	BEAD WIRE		Reference		GB/T14450- 2008		Diameter		Φ0.89mmHT
Item			Standard				Result
Diameter(mm)			0.89±0.02				0.87-0.91
Break force (N)			≥2100				2100-2260
Yield rate (%)			93.0-96.0				93.3-94.9
Elongation at break(%)			≥5.0				7.0-8.5
Torsion(360°/200d)			≥50				59-75
Residual torsion (° /9m)			≯360				90-120
Bronze coated(g/kg)			0.35-0.65				0.40-0.51
Sn (%)			0.5-3.0				0.7-1.5
Straightness (mm/3m)			≤500				180-460
Adhesion (N/50mm)			≥1200				1242
Surface Quality			Coating Smooth and uniform				conform
Assay of chemical contents
C		Mn		Si		P		S
0.70-1.50		0.50-0.60		0.17-0.26		0.006-0.016		0.005-0.018
