High tensile 0.78mm Bronze Coated Bead Wire Steel For Automobiles

I'm Online Chat Now
Certification
China Zhangjiagang City Shengda Steel Wire Rope Co.,Ltd. certification
China Zhangjiagang City Shengda Steel Wire Rope Co.,Ltd. certification
1.Excellent quality, competitive price, good service, timely delivery; 2. No customer complaints

—— Deestone Limited

High tensile 0.78mm Bronze Coated Bead Wire Steel For Automobiles

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  High tensile 0.78mm Bronze Coated Bead Wire Steel For Automobiles Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shengda
Certification: ISO9001 , GB/T14450- 2008
Model Number: 0.78mmHT
standard:: AISI,ASTM,GB,JIS
application:: maufacturing
steel grade:: 70#,72#,80#,82#
Payment & Shipping Terms:
Minimum Order Quantity: 20MT
Price: free sample

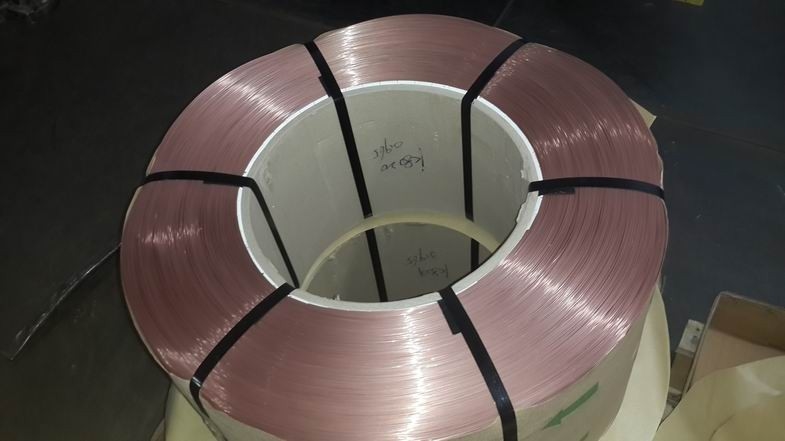

Packaging Details: Z2 350-420kgs/coil with plastic in one box on pallet ,in container
Delivery Time: With 20 days after confirmed purchase order
Payment Terms: L/C at sight ,T/T in advance,D/P at sight
Supply Ability: Monthly 6000 Mt
Detailed Product Description
Surface Quality: Coating Smooth And Uniform Tensile Strength (Mpa): 2156
Elongation At Break (%): 8.8 Torsion (360°/200d): 59
Diameter(mm): 0.79 Straightness: 450
High Light:

tyre bead wire

,

brass coated steel wire

,

copper coated steel wire

High tensile 0.78mm Bronze Coated Bead Wire Steel For Automobiles



1. Copper coated

2. Coating Smooth and uniform

3. High tensile



Description:

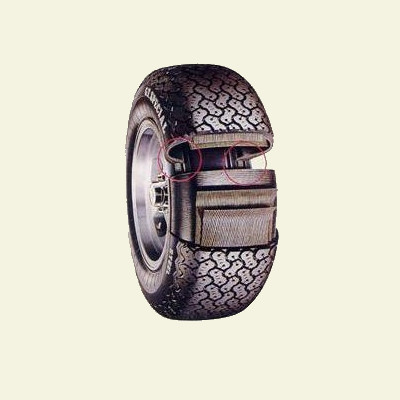

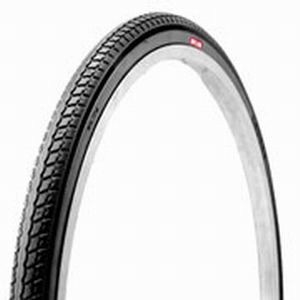

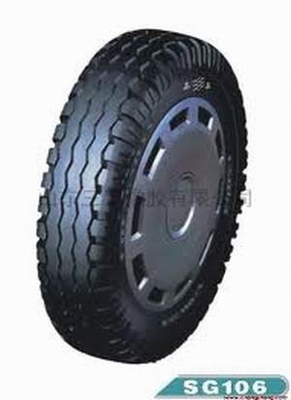

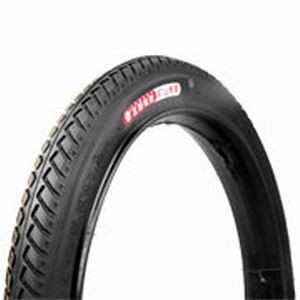

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.





Specifications:



Description

BEAD  WIRE

Reference

GB/T14450- 2008

Diameter

Φ0.78mm

Item

Standard

Result

Diameter(mm)

0.78±0.02

0.79

Surface Quality

Coating Smooth and uniform

conform

Straightness

The property of a 3 meter long wire to be straightness at a 600mm-distance of between Straight parallel lines

450

Tensile(Mpa)

≥1850

2156

Elongation(%)

≥5

8.8

Torsion(360°/200d)

≥50

59

Cu (%)

≥97

99.3

Yield Rate %

>80

90.1

Sn (%)

0.3-3.0

0.70

Adhesion

≥685N/50mm

948N/50mm

Assay of chemical contents

C

Mn

Si

P

S

0.68-0.71

0.5-0.60

0.17-0.28

0.006-0.018

0.005-0.019
