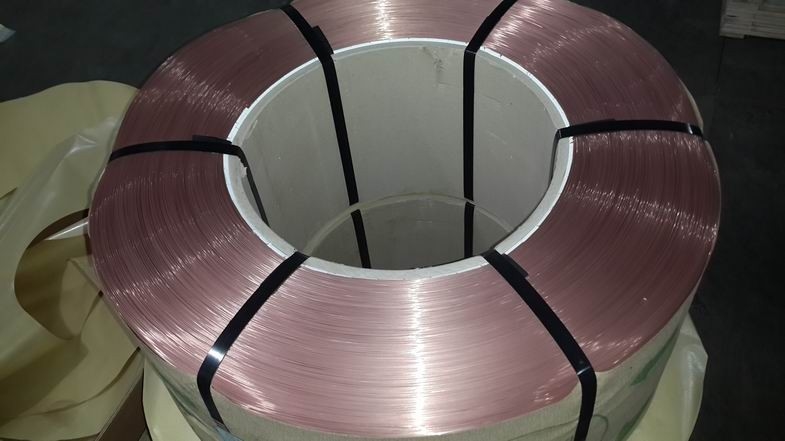

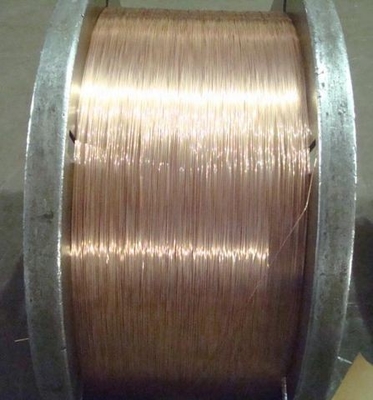

2100Mpa Tensile strength Bronze Coated Bead Wire For Motorcycles

I'm Online Chat Now
Certification
China Zhangjiagang City Shengda Steel Wire Rope Co.,Ltd. certification
China Zhangjiagang City Shengda Steel Wire Rope Co.,Ltd. certification
1.Excellent quality, competitive price, good service, timely delivery; 2. No customer complaints

—— Deestone Limited

2100Mpa Tensile strength Bronze Coated Bead Wire For Motorcycles

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  2100Mpa Tensile strength Bronze Coated Bead Wire For Motorcycles Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shengda
Certification: ISO9001
Model Number: 0.96mm
Steel Grade:: #70,#72,#80 #82
Application:: Manufacturing
Steel Grade:: #70,#72,#80 #82
Application:: Manufacturing
Payment & Shipping Terms:
Minimum Order Quantity: 20MT
Price: free sample

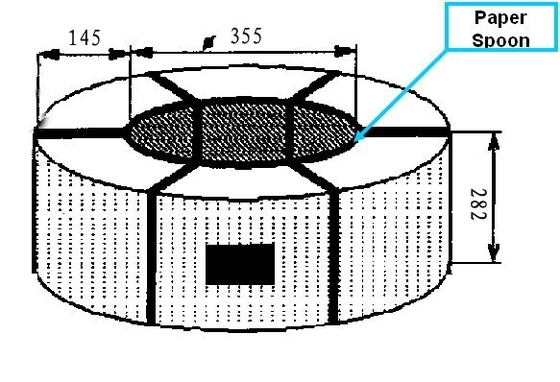

Packaging Details: Z2 350-420kgs/coil with plastic and weaving bag then on pallet
Delivery Time: With 20 days after confirmed purchase order
Payment Terms: L/C at sight ,T/T in advance,D/P at sight
Supply Ability: Monthly 6000 Mt
Detailed Product Description
Surface Quality: Coating Smooth And Uniform Tensile Strength (Mpa): 1920-2100
Elongation At Break (%): 7.2 -8.8 Torsion (360°/200d): 30-40
Application: Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles Feature: Durable, Normal Tensile, Rustproof, Waterproof
Diameter(mm): 0.94-0.97 Yield Ratio (%): 92.7-93.9
High Light:

tyre bead wire

,

brass coated steel wire

,

copper coated steel wire

2100Mpa Tensile strength Bronze Coated Bead Wire For Motorcycles



2100mpa tensile strength

Copper coated smoothly

6000MT monthly production





Description:

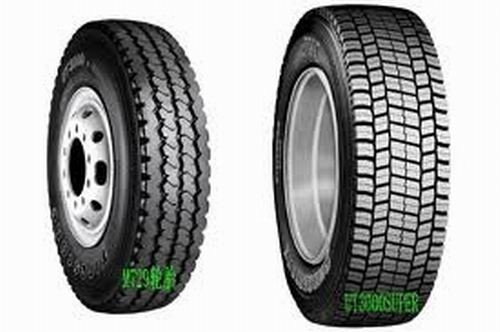

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.





Specifications:



Description

BEAD  WIRE

Reference

GB/T14450- 2008

Diameter

Φ0.96mm

Item

Standard

Result

Diameter(mm)

0.96±0.02

0.94-0.97

Tensile strength (Mpa)

≥1850

1920-2100

Yield ratio (%)

92.0-95.0

92.7-93.9

Elongation at break (%)

≥5

7.2 -8.8

Torsion (360°/200d)

≥28

30-40

Residual torsion (°/9m)

≯360

90-120

Bronze coated(g/kg)

0.35-0.65

0.40-0.52

Cu (%)

≥97

98.3-99.2

Sn (%)

0.5-3.0

0.80-1.70

Straightness (mm/3m)

≤400

120-400

Adhesion (N/50mm)

≥932

1255

Surface Quality

Coating Smooth and uniform

conform

Assay of chemical contents

C

Mn

Si

P

S

0.70-0.72

0.50-0.60

0.17-0.30

0.006-0.016

0.005-0.018
