High Tensile Copper Clad Steel Wire , 2050Mpa Breaking Force

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  High Tensile Copper Clad Steel Wire , 2050Mpa Breaking Force Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shengda
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 20 MT
Packaging Details: Z2
Delivery Time: With 20 days after confirmed purchase order
Payment Terms: L/C at sight ,T/T in advance,D/P at sight
Supply Ability: Monthly 6000 Mt
Detailed Product Description
Application: Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles Feature: Bronze Coated, Durable, Rustproof, Waterproof
Diameter(mm): 1.81-1.85 Breaking Force (Mpa): 2050-2200
Elongation At Break(%): 5.0-6.0 Yield Ratio(%): 85.4-87.6
Torsion(360°/100d): 29-35 Bronze Coated(g/kg): 0.60-0.75
High Light:

copper plated rods

,

copper coated steel wire

,

copper plated wire

High Tensile Copper Clad Steel Wire , 2050Mpa Breaking Force



2200mpa high tensile strength

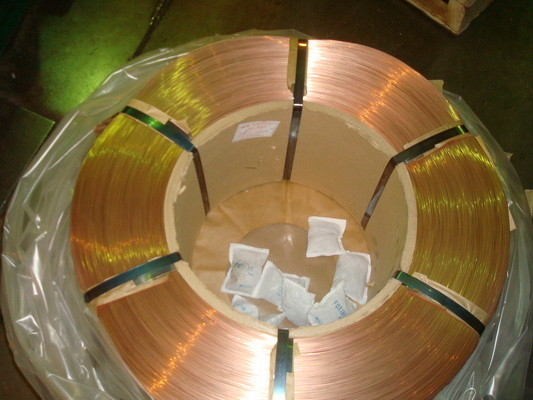

Coil with Six steel belts fixed

6000MT monthly production





Description:



Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.





Specifications:



Description

BEAD  WIRE

Reference

GB/T14450- 2008

Diameter

Φ 1.83mmHT

Item

Standard

Result

Diameter(mm)

1.83± 0.02

1.81-1.85

Breaking force (Mpa)

≥2050

2050-2200

Elongation at break(%)

≥5.0

5.0-6.0

Yield ratio(%)

≥85

85.4-87.6

Torsion(360°/100d)

≥25

29-35

Bronze coated(g/kg)

0.56-0.78

0.60-0.75

Sn (%)

0.3-3.0

1.7

Cu(%)

≥97

98.3

Surface Quality

Coating Smooth and uniform

conform
