Carbon Copper Coated Tire Bead Wire High Tensile For Planes Φ 1.83mm
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Breaking Force (Mpa): | 2050-2200 | Diameter(mm): | 1.81-1.85 |
|---|---|---|---|
| Elongation At Break (%): | 5.0-6.0 | Torsion(360°/100d): | 29-35 |
| Yield Ratio(%): | 85.4-87.6 | Bronze Coated(g/kg): | 0.32-0.36 |
| High Light: | high tensile strength wire,tensile strength steel wire,high strength steel wire |
||

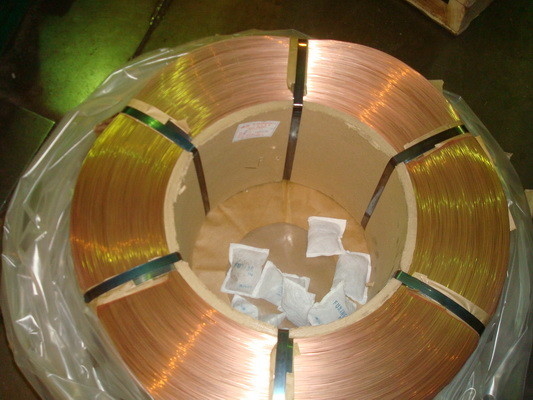

Carbon Copper Coated Tire Bead Wire High Tensile For Planes Φ 1.83mm
- Elongation at break (6.0%)
- Automatic computer control system
- specialization product line
- Steel grade:70#,72#,80#,82#
- Standard: AISI,ASTM,GB,JIS
Description:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Tyre Bead Wire is a copper/ bronze coated wire and its main function is to act as reinforcement and it helps to get a proper grip of the Tyre on the rim.The bead is the crucial link through which the vehicle load is transferred from rim to the tire. It significantly affects the safety, strength, and the durability of tires.
Following basic properties are required in the making of tyre bead wire:
- Combination of high tensile and ductility,
- Uniform and appropriate bronze coating,
- Strong adhesion of wire to the rubber,
- Consistency in physical properties
- Uniform winding and proper coil dimensions.
Our range of Tyre Bead Steel Wire includes:
- High Tensile:0.78mmHT 0.89 mmHT, 0.95 mmHT, 0.965mmHT1.295 mmHT, 1.40 mmHT, 1.55 mmHT, 1.60 mmHT, 1.83 mmHT
- Normal Tensile: 0.78 mm, 0.89 mm, .0.95mm 0.965 mm, 1.55mm1.65 mm,1.8mm 2.0 mm, 2.2 mm
Applications
- Reinforcement of all types of tyres such as trucks, buses, cars, motorcycles, bicycles etc.
- use in rubber
Features:
- Precisely engineered
- Fine finish
- Tensile strength
Specifications:
|
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ 1.83mmHT |
|
Item |
Standard |
Result |
|||
|
Diameter(mm) |
1.83± 0.02 |
1.81-1.85 |
|||
|
Breaking force (Mpa) |
≥2050 |
2050-2200 |
|||
|
Elongation at break(%) |
≥5.0 |
5.0-6.0 |
|||
|
Yield ratio(%) |
≥85 |
85.4-87.6 |
|||
|
Torsion(360°/100d) |
≥25 |
29-35 |
|||
|
Bronze coated(g/kg) |
0.20-0.40 |
0.32-0.36 |
|||
|
Sn (%) |
0.3-3.0 |
1.7 |
|||
|
Cu(%) |
≥97 |
98.3 |
|||
|
Surface Quality |
Coating Smooth and uniform |
conform |
|||
|
