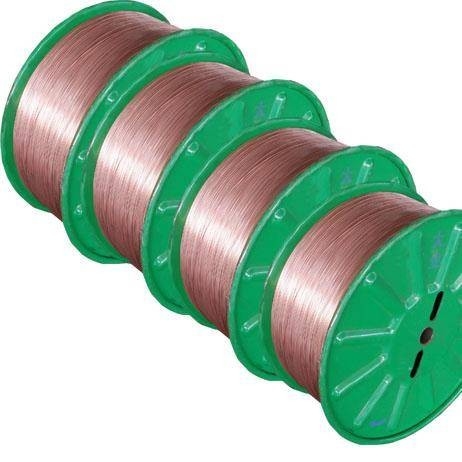

Diameter 0.78MM Planes Low Carbon Steel Wires , Bronze Coated

Name: Diameter 0.78MM Planes Low Carbon Steel Wires , Bronze Coated
Brand: Shengda

Large Image : Diameter 0.78MM Planes Low Carbon Steel Wires , Bronze Coated Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shengda
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	20 MT

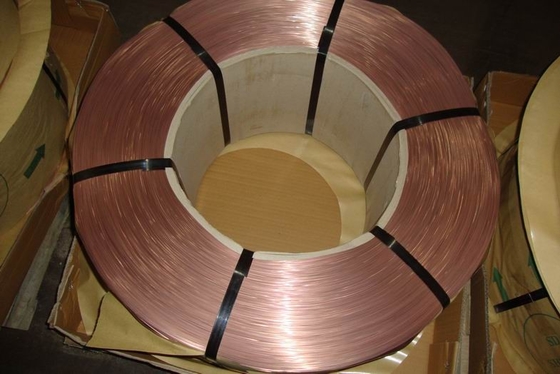

Packaging Details:	Z2
Delivery Time:	With 20 days after confirmed purchase order
Payment Terms:	L/C at sight ,T/T in advance,D/P at sight
Supply Ability:	Monthly 6000 Mt

Contact Now

Detailed Product Description

Diameter(mm)：:	Φ0.78mm	Straightness：:	450
Yield Rate::	90.1	Adhesion：:	948N/50mm
Tensile Strength (Mpa)::	2156	Elongation At Break (%):	8.8
Cu(%):	99.3	Application:	Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles
Feature:	Bronze Coated, Durable, Normal Tensile, Rustproof	Surface Quality:	Coating Smooth And Uniform
High Light:	low carbon steel rod , carbon steel wire rod , tensile strength of low carbon steel

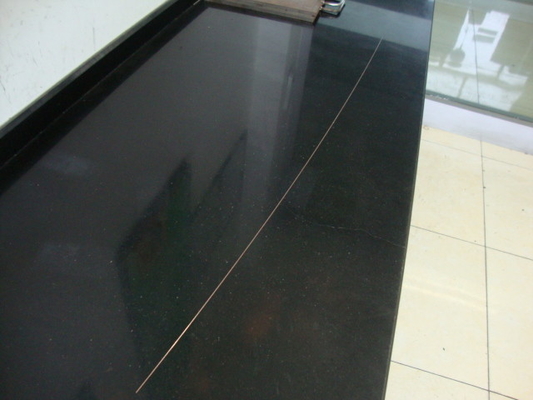

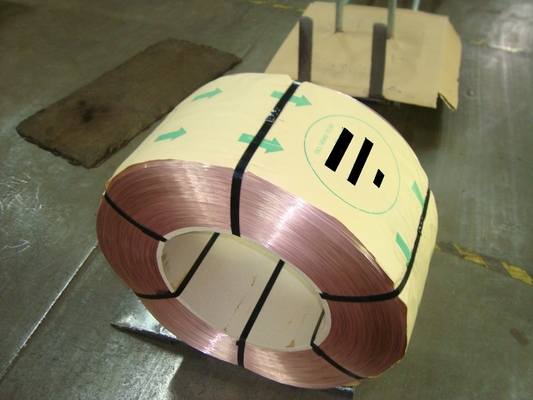

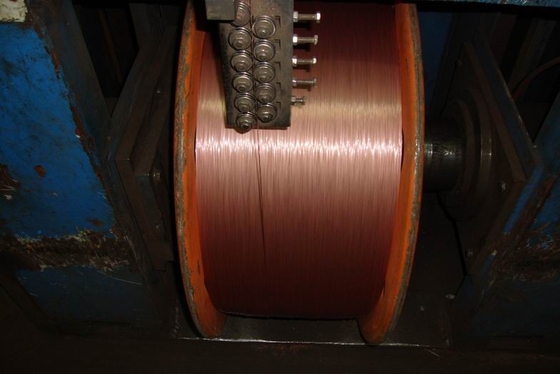

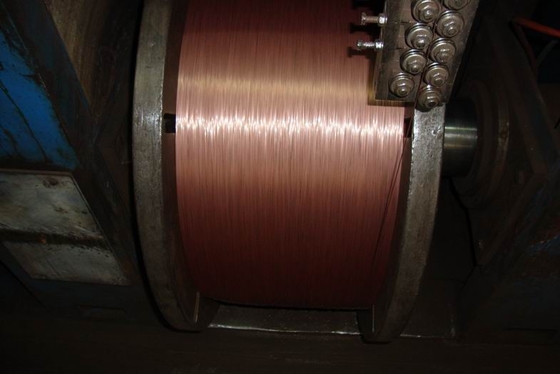

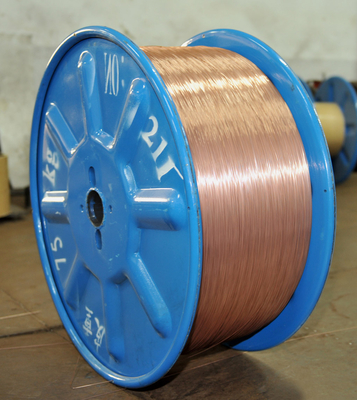

Diameter 0.78MM Planes Low Carbon Steel Wires , Bronze Coated

1. Copper coated

2. Coating Smooth and uniform

3. High tensile

Description:

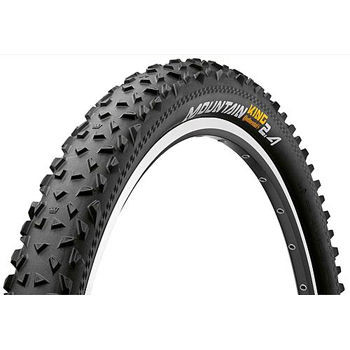

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.

Specifications:

Description	BEAD WIRE		Reference		GB/T14450- 2008		Diameter		Φ0.78mm
Item			Standard				Result
Diameter(mm)			0.78±0.02				0.79
Surface Quality			Coating Smooth and uniform				conform

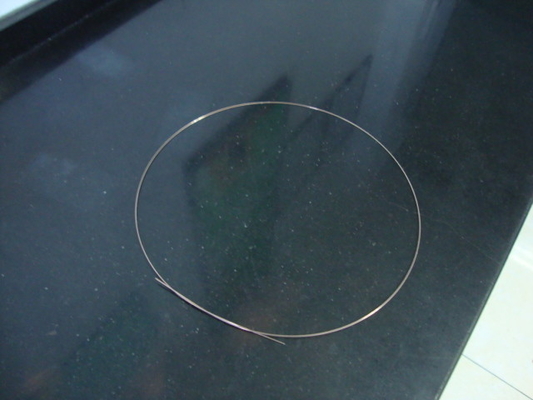

Straightness			The property of a 3 meter long wire to be straightness at a 600mm-distance of between Straight parallel lines				450
Tensile(Mpa)			≥1850				2156
Elongation(%)			≥5				8.8
Torsion(360°/200d)			≥50				59
Cu (%)			≥97				99.3
Yield Rate %			＞80				90.1
Sn (%)			0.3-3.0				0.70
Adhesion			≥685N/50mm				948N/50mm
Assay of chemical contents
C		Mn		Si		P		S
0.68-0.71		0.5-0.60		0.17-0.28		0.006-0.018		0.005-0.019
