Product Details:
Payment & Shipping Terms:
|
Diameter(mm):: | Φ2.3mm | Straightness:: | 200-500 |
---|---|---|---|
Tensile Strength (Mpa):: | 1700-1740 | Elongation At Break (%): | 5.5-6.5 |
Torsion(360°/100d): | 28-31 | Bronze Coated(g/kg): | 0.19-0.24 |
Application: | Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles | Feature: | Bronze Coated, Durable, Normal Tensile, Rustproof, Waterproof |
High Light: | mild steel wire,copper clad steel wire,low carbon steel rod |

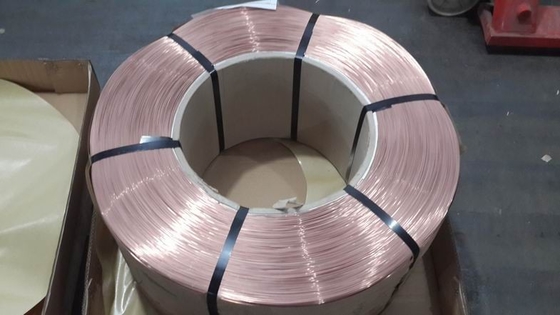

Normal Tensile Rustproof Φ2.3mm Low Carbon Steel Wire For Motorcycles
High material
Advanced technology
Multiple payment and Transportation
Description:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ2.3mm |
Item |
Standard |
Result |
|||
Diameter(mm) |
2.3±0.02 |
2.29-2.30 |
|||
Tensile strength (Mpa) |
≥1500 |
1700-1740 |
|||
Elongation at break (%) |
≥5 |
5.5-6.5 |
|||
Torsion(360°/100d) |
≥20 |
28-31 |
|||
Bronze coated(g/kg) |
0.10-0.30 |
0.19-0.24 |
|||
Straightness(mm/3m) |
≤600 |
200-500 |
|||
Surface Quality |
Coating Smooth and uniform |
conform |
