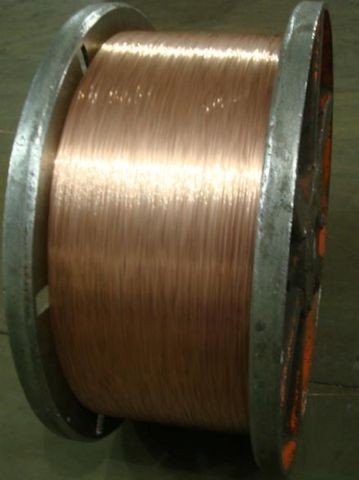

Brass Plated Low Carbon Steel Wire Φ0.78mmHT For Bicycle / Bike

Large Image : Brass Plated Low Carbon Steel Wire Φ0.78mmHT For Bicycle / Bike Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shengda
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	20 MT
Packaging Details:	Z2
Delivery Time:	With 20 days after confirmed purchase order
Payment Terms:	L/C at sight ,T/T in advance,D/P at sight
Supply Ability:	Monthly 6000 Mt

Contact Now

Detailed Product Description

Diameter(mm)：:	Φ0.78mmHT	Straightness：:	450
Yield Rate::	90.1	Adhesion：:	948N/50mm
Tensile Strength (Mpa)::	2256	Application:	Automobiles, Bicycle, Bike, Motorcycles, Vehicles
Feature:	Bronze Coated, Durable, High Tensile, Rustproof, Waterproof	Torsion(360°/200d):	65
High Light:	low carbon steel rod , carbon steel wire rod , tensile strength of low carbon steel

Brass Plated Low Carbon Steel Wire Φ0.78mmHT For Bicycle / Bike

1. High tensile

2. Good adhesion

3. Super straightness

Description:

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.

Specifications:

Description	BEAD WIRE		Reference		GB/T14450- 2008		Diameter		Φ0.78mmHT
Item			Standard				Result
Diameter(mm)			0.78±0.02				0.79
Surface Quality			Coating Smooth and uniform				conform
Straightness			The property of a 3 meter long wire to be straightness at a 600mm-distance of between Straight parallel lines				450
Tensile(Mpa)			≥2100				2256
Elongation(%)			≥5				9.9
Torsion(360°/200d)			≥50				65
Cu (%)			≥97				99.3
Yield Rate %			＞85				90.1
Sn (%)			0.3-3.0				0.70
Adhesion			≥685N/50mm				948N/50mm
Assay of chemical contents
C		Mn		Si		P		S
0.68-0.71		0.5-0.60		0.17-0.28		0.006-0.018		0.005-0.019
