Product Details:
Payment & Shipping Terms:
|
Diameter(mm):: | Φ0.89mm | Yield Rate:: | 93.3-94.9% |
---|---|---|---|
Break Force (N): | 1990-2160 | Adhesion:: | 1242 |
Elongation At Break (%): | 7.0-8.5 | Bronze Coated(g/kg): | 0.40-0.51 |
Application: | Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles | Feature: | Bronze Coated, Durable, Normal Tensile, Rustproof, Waterproof |
High Light: | low carbon steel rod,carbon steel wire rod,tensile strength of low carbon steel |

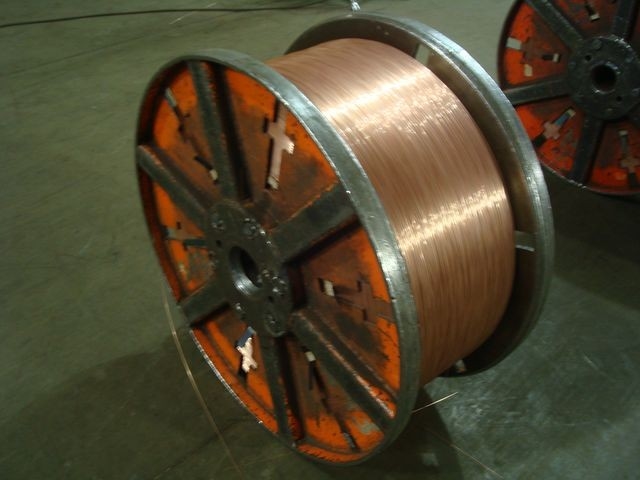

Normal Tensile Low Carbon Steel Wire Φ0.89mm For Motorcycles
1. Great break force
2. Yield rate 94%
3. Quick delivery time
Description:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ0.89mm |
||||
Item |
Standard |
Result |
|||||||
Diameter(mm) |
0.89±0.02 |
0.87-0.91 |
|||||||
Break force (N) |
≥1950 |
1990-2160 |
|||||||
Yield rate (%) |
93.0-96.0 |
93.3-94.9 |
|||||||
Elongation at break(%) |
≥5.0 |
7.0-8.5 |
|||||||
Torsion(360°/200d) |
≥50 |
59-75 |
|||||||
Residual torsion (° /9m) |
≯360 |
90-120 |
|||||||
Bronze coated(g/kg) |
0.35-0.65 |
0.40-0.51 |
|||||||
Sn (%) |
0.5-3.0 |
0.7-1.5 |
|||||||
Straightness (mm/3m) |
≤500 |
180-460 |
|||||||
Adhesion (N/50mm) |
≥1200 |
1242 |
|||||||
Surface Quality |
Coating Smooth and uniform |
conform |
|||||||
Assay of chemical contents |
|||||||||
C |
Mn |
Si |
P |
S |
|||||
0.70-0.72 |
0.50-0.60 |
0.17-0.26 |
0.006-0.016 |
0.005-0.018 |
