Φ1.0mm Low Carbon Steel Wire For Planes , High Tensile Brass Plated
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Diameter(mm)：: | Φ1.0mmHT | Straightness：: | 190-400 |
|---|---|---|---|
| Tensile Strength (Mpa）：: | 2150-2250 | Elongation At Break (%): | 5.0-6.0 |
| Torsion(360°/100d): | 31-39 | Bronze Coated(g/kg): | 0.41-0.49 |
| Application: | Automobiles, Bicycle, Bike, Motorcycles, Planes, Vehicles | Feature: | Bronze Coated, Durable, High Tensile, Rustproof, Waterproof |
| High Light: | low carbon steel rod,carbon steel wire rod,tensile strength of low carbon steel |
||

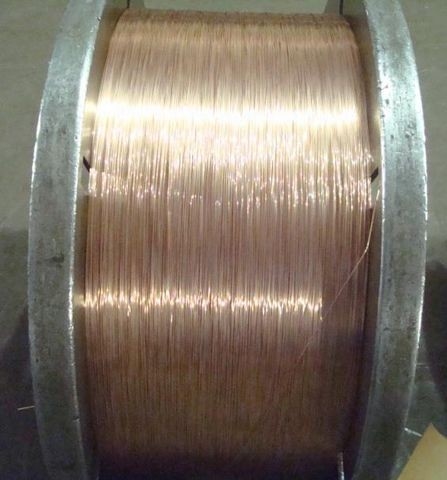

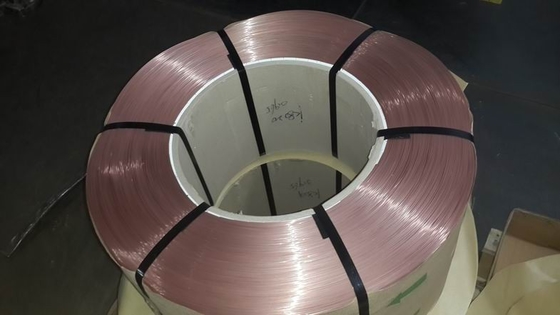

Φ1.0mm Low Carbon Steel Wire For Planes , High Tensile Brass Plated
First-class material
High tensile 2250map
Elongation at break 6.0%
Description:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
|
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ1.0mmHT |
|
Item |
Standard |
Result |
|||
|
Diameter(mm) |
1.0±0.02 |
0.99-1.01 |
|||
|
Tensile strength (Mpa) |
≥2100 |
2150-2250 |
|||
|
Elongation at break (%) |
≥5 |
5.0-6.0 |
|||
|
Torsion(360°/100d) |
≥25 |
31-39 |
|||
|
Bronze coated(g/kg) |
0.30-0.75 |
0.41-0.49 |
|||
|
Straightness(mm/3m) |
≤500 |
190-400 |
|||
|
Surface Quality |
Coating Smooth and uniform |
conform |
|||
