Bronze Coated(g/kg): | 0.40-0.51 | Diameter(mm): | 0.87-0.91 |
---|---|---|---|
Straightness: | 180-460 | Surface Quality: | Coating Smooth And Uniform |
Break Force (N): | 1990-2160 | Yield Rate (%): | 93.3-94.9 |
Elongation At Break(%): | 7.0-8.5 | Torsion(360°/200d): | 59-75 |
High Light: | Tyre Bead Wire,Steel Bead Wire,Tire Bead Wire,High Carbon Steel Wire |

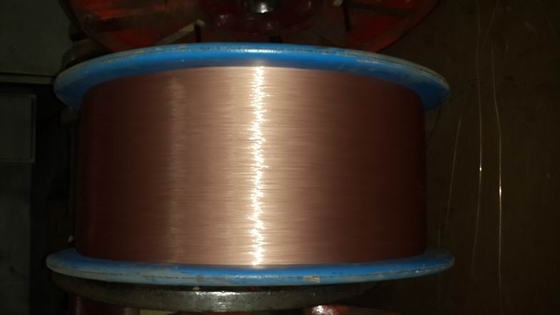

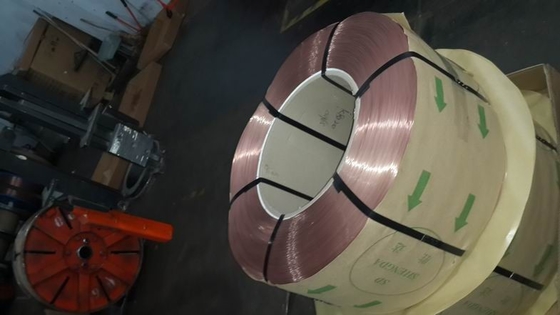

0.89mm Steel Copperize Tire Bead Wire / Bike Tyre Wires Durable Yield Rate 94%
1. Great break force
2. Yield rate 94%
3. Quick delivery time
Steel grade:70#,72#,80#,82#
Standard: AISI,ASTM,GB,JIS
Tyre Bead Wire is a carbon bronze coated steel wire used in all tyres. The main function of bead wire is to hold the tyre on the rim and to resist the action of the inflated pressure, which constantly tries to force it off. The bead is the crucial link through which the vehicle load is transferred from rim to the tyre. It significantly affects the safety, strength, and the durability of tyres.
Following basic properties are required in the making of tyre bead wire:
The Tyre Bead Steel Wire we provide is of premium quality and in compliance with all international standard. These are extensively used in Tyre industry and deliver all their services perfectly.
Features:
Description:

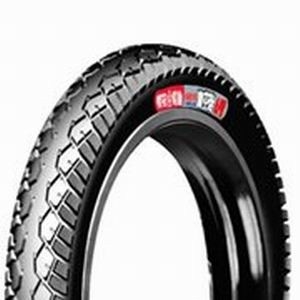

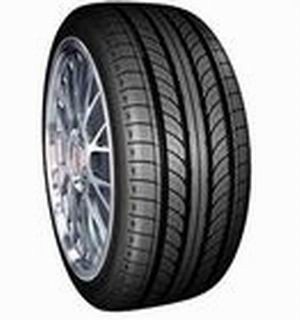

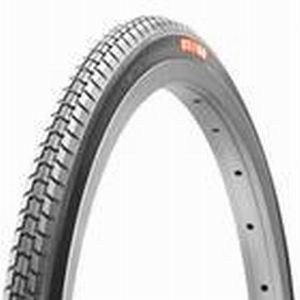

Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ0.89mm |
||||
Item |
Standard |
Result |
|||||||
Diameter(mm) |
0.89±0.02 |
0.87-0.91 |
|||||||
Break force (N) |
≥1950 |
1990-2160 |
|||||||
Yield rate (%) |
93.0-96.0 |
93.3-94.9 |
|||||||
Elongation at break(%) |
≥5.0 |
7.0-8.5 |
|||||||
Torsion(360°/200d) |
≥50 |
59-75 |
|||||||
Residual torsion (° /9m) |
≯360 |
90-120 |
|||||||
Bronze coated(g/kg) |
0.35-0.65 |
0.40-0.51 |
|||||||
Sn (%) |
0.5-3.0 |
0.7-1.5 |
|||||||
Straightness (mm/3m) |
≤500 |
180-460 |
|||||||
Adhesion (N/50mm) |
≥1200 |
1242 |
|||||||
Surface Quality |
Coating Smooth and uniform |
conform |
|||||||
Assay of chemical contents |
|||||||||
C |
Mn |
Si |
P |
S |
|||||
0.70-0.72 |
0.50-0.60 |
0.17-0.26 |
0.006-0.016 |
0.005-0.018 |
Our offered range is widely used in automobile industry, it act as reinforcement and helps to get a proper grip on tyres. Apart from this, clients can avail these products from us in various sizes, as per their varied needs.
