Product Details:
Payment & Shipping Terms:
|
Bronze Coated(g/kg): | 0.41-0.49 | Diameter(mm): | 0.99-1.01 |
---|---|---|---|
Straightness: | 190-400 | Surface Quality: | Coating Smooth And Uniform |
Torsion(360°/100d): | 31-39 | Tensile Strength (Mpa): | 1910-2030 |
Elongation At Break (%): | 5.0-6.0 | ||
High Light: | High Carbon Steel Wire,Steel Bead Wire,Copper Coated Steel Wire |

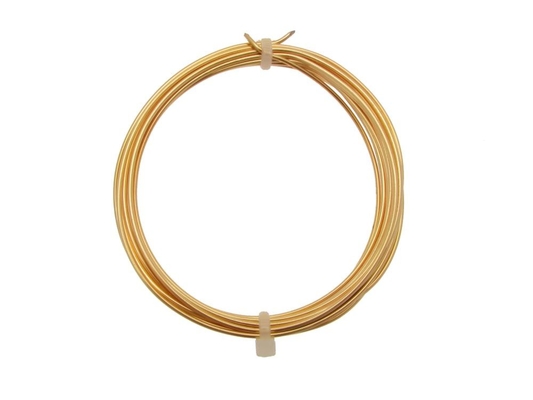

Φ 1.0 MM High Copper Tire Bead Wire , Brass Coated Wire For Car Custom
Superior quality
High copper 0.49g/kg
Moisture proof packing
Description:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Tyre Bead Wire is a carbon bronze coated steel wire used in all tyres. The main function of bead wire is to hold the tyre on the rim and to resist the action of the inflated pressure, which constantly tries to force it off. The bead is the crucial link through which the vehicle load is transferred from rim to the tyre. It significantly affects the safety, strength, and the durability of tyres.
Following basic properties are required in the making of tyre bead wire:
The Tyre Bead Steel Wire we provide is of premium quality and in compliance with all international standard. These are extensively used in Tyre industry and deliver all their services perfectly.
Features:
Specifications:
Steel grade:70#,72#,80#,82#
Standard: AISI,ASTM,GB,JIS
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ1.0mm |
Item |
Standard |
Result |
|||
Diameter(mm) |
1.0±0.02 |
0.99-1.01 |
|||
Tensile strength (Mpa) |
≥1900 |
1910-2030 |
|||
Elongation at break (%) |
≥5 |
5.0-6.0 |
|||
Torsion(360°/100d) |
≥25 |
31-39 |
|||
Bronze coated(g/kg) |
0.30-0.75 |
0.41-0.49 |
|||
Straightness(mm/3m) |
≤500 |
190-400 |
|||
Surface Quality |
Coating Smooth and uniform |
conform |
Our offered range is widely used in automobile industry, it act as reinforcement and helps to get a proper grip on tyres. Apart from this, clients can avail these products from us in various sizes, as per their varied needs.
